FH721V-FS13 4 Stroke Engine FH721V

FH721V-FS13 Carburetor Diagram

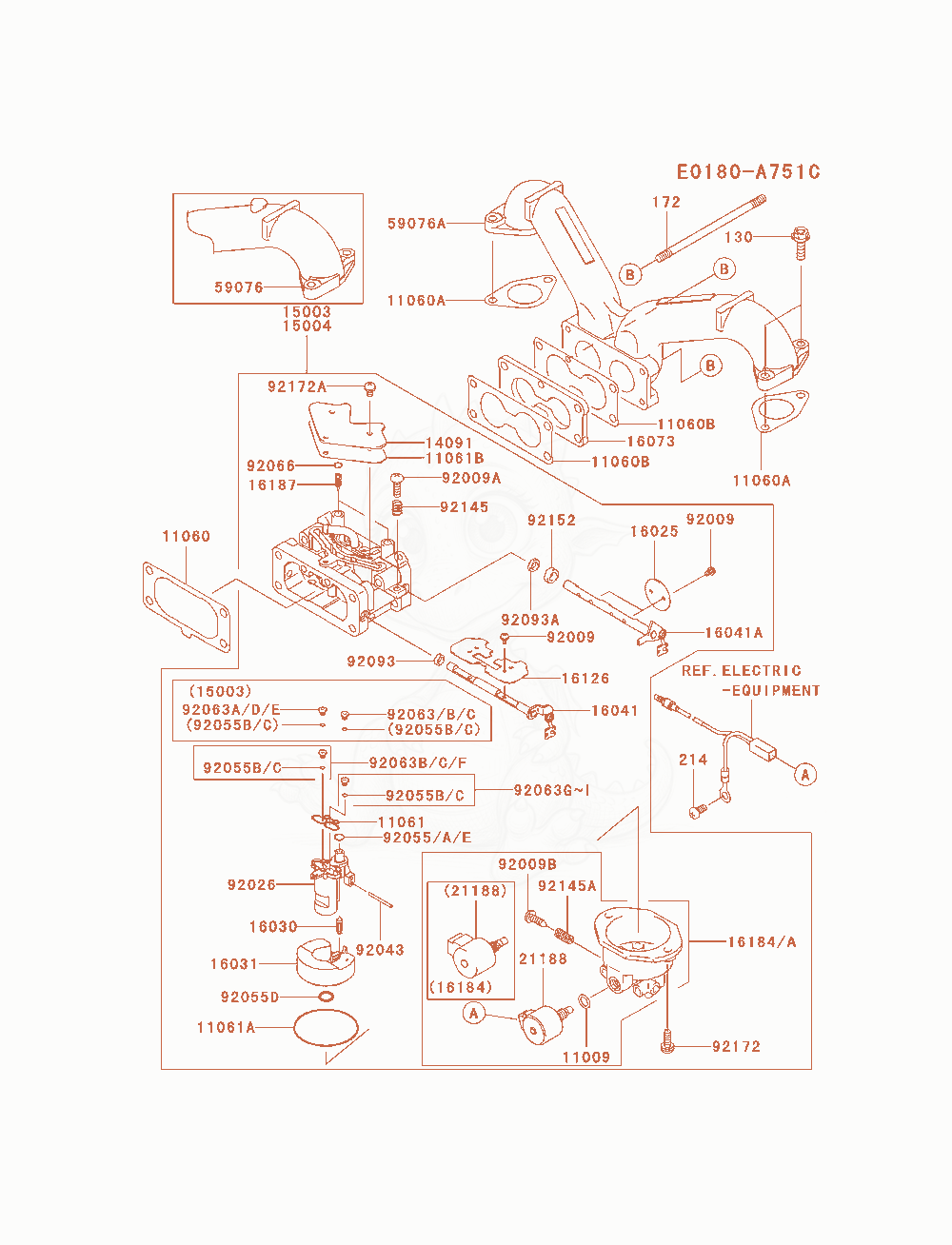

Exploded parts diagram of the Carburetor of a Kawasaki FH721V-FS13 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

92063F92063-7082
$29.60
JET-MAIN,#104×1
92063G92063-7119
$29.63
JET-MAIN,#106×1
92063H92063-7133
$20.93
JET-MAIN,#103×AR
92063I92063-7134
$20.93
JET-MAIN,#100×AR
9206692066-7009
$6.96
PLUG,EXPANSION×2
9209392093-7001
$2.12
SEAL,D=5.9×1
92093A92093-7002
$1.93
SEAL,D=6.9×1
9214592145-7010
$2.50
SPRING×1
92145A92145-7011
$2.52
SPRING×1
9215292152-7005
$10.62
COLLAR×1
9217292172-7005
$1.45
SCREW,M5×2
92172A92172-7006
$1.35
SCREW,M4×3
130130AA0620
$3.09
BOLT-FLANGED,6X20×4
172172BA06105
$3.75
BOLT-STUD,6X105×2
214214AA0510
$0.32
SCREW-PAN+-,5X10×1
