FH721V-AS19 4 Stroke Engine FH721V

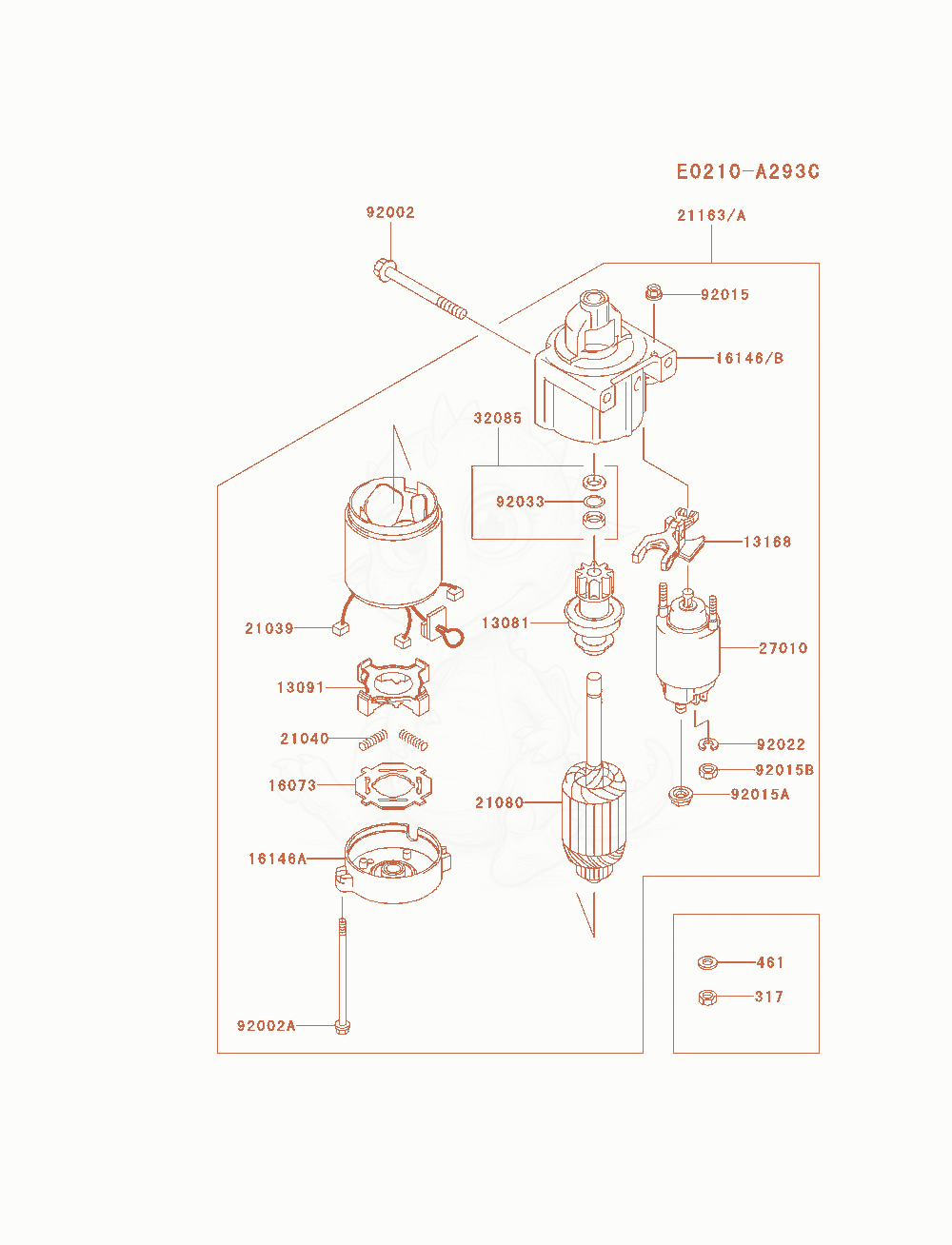

FH721V-AS19 Starter Diagram
- 1308113081-2227Not stockedCLUTCH-ASSY×1
- HOLDER,BRUSH×1
- LEVER,SHIFT×1
- INSULATOR×1
- COVER-ASSY×0
- COVER-ASSYReplaced by 16146-0884×1
- COVER-ASSY×1
- BRUSH×4
- SPRING-BRUSH×4
- ARMATURE×1
- STARTER-ELECTRICReplaced by 21163-0799×0
- STARTER-ELECTRICReplaced by 21163-0799×1
- SWITCHReplaced by 27010-7005×1
- STOPPER×1
- BOLT,8X83×2
- BOLT×2
- NUT×2
- NUT×1
- 92015B92015-2148Not stockedNUT×1
- 9202292022-2211Not stockedWASHER×1
- RING-SNAP×1
- NUT-HEX-SMALL,8MM×1
- WASHER-SPRING,8MM×1
