Kawasaki OEM PartGENUINE OEM PARTS

FH721V-AS12 4 Stroke Engine FH721V

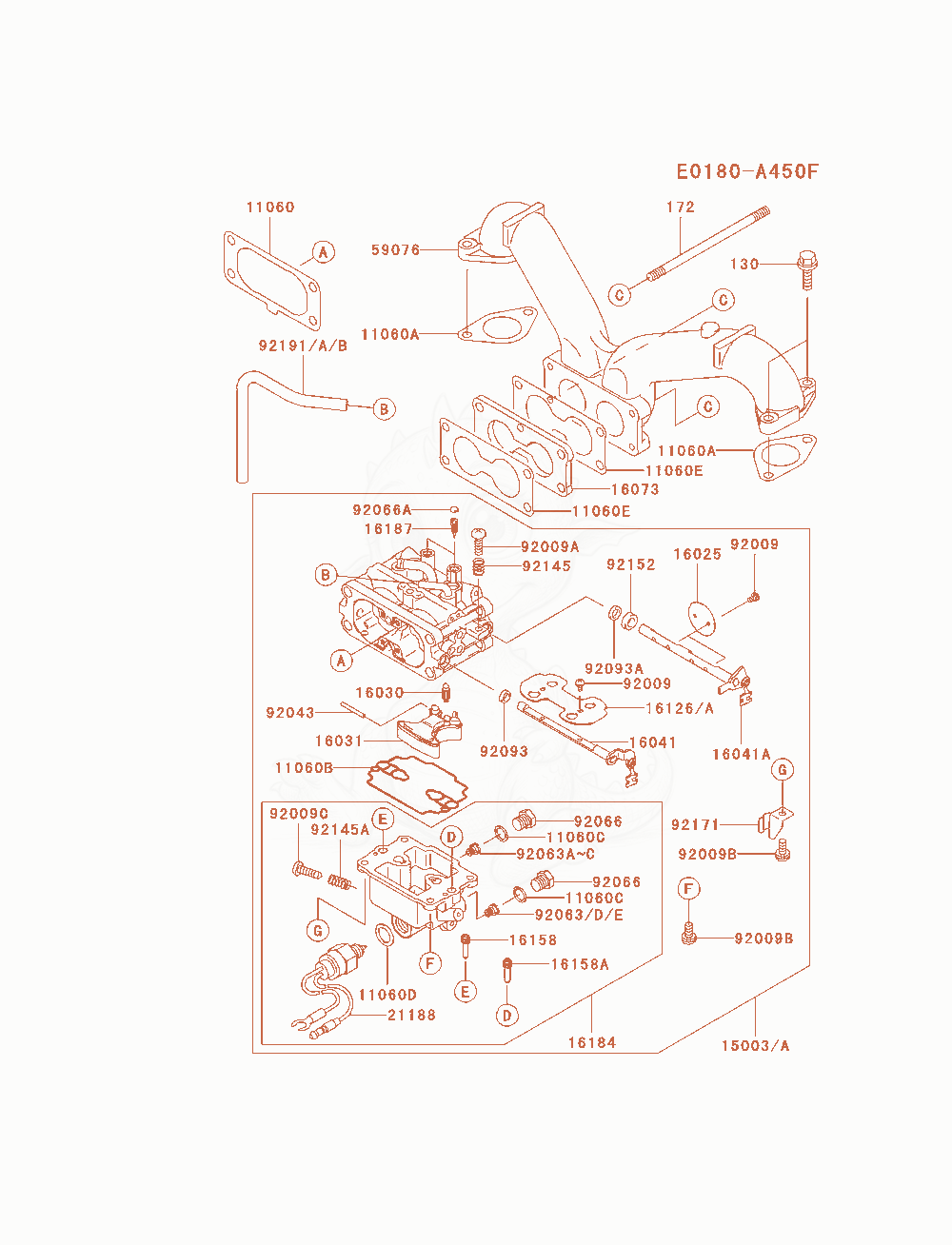

FH721V-AS12 Carburetor Diagram

Exploded parts diagram of the Carburetor of a Kawasaki FH721V-AS12 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 9217192171-7001Not stocked
    CLAMP×1
  • 9219192191-7010
    $1.31
    TUBE,4.76X6.35X160×1
  • 130130B0620
    $3.06
    BOLT-FLANGED,6X20Replaced by 130AA0620×4
  • 172172G06105
    $3.75
    BOLT-STUD,6X105Replaced by 172BA06105×2
