FH721V-AS09 4 Stroke Engine FH721V

FH721V-AS09 Piston / Crankshaft Diagram

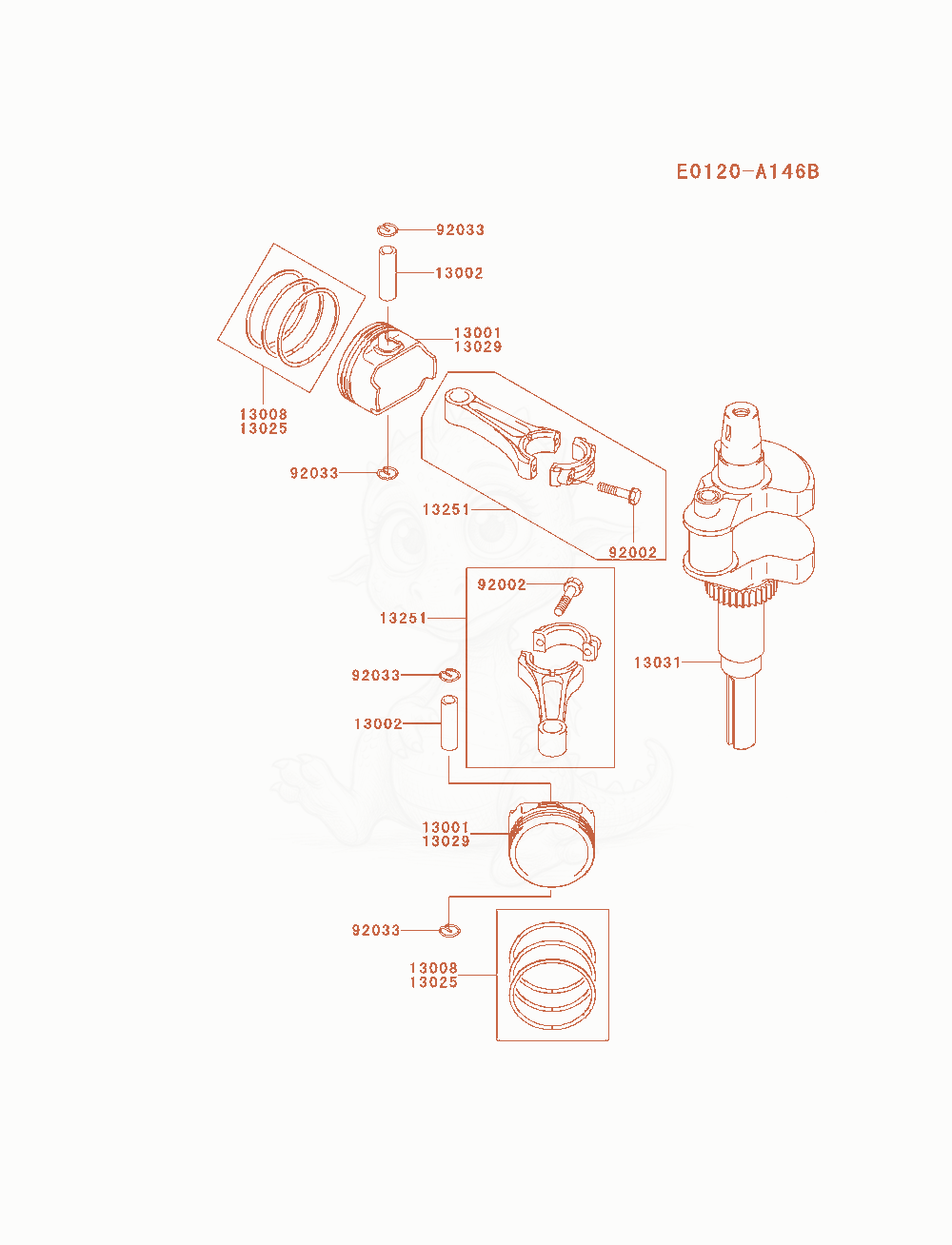

Exploded parts diagram of the Piston / Crankshaft of a Kawasaki FH721V-AS09 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1300113001-7007
$38.08
PISTON-ENGINE×2
1300213002-7001
$4.18
PIN-PISTON×2
1300813008-6058
$71.43
RING-SET-PISTON×2
1302513025-7002
$47.88
RING-SET-PISTON L,0.50×AR
1302913029-7003
$81.97
PISTON-ENGINE L,0.50×AR
1303113031-7003
$289.25
CRANKSHAFT-COMP×1
1325113251-0715
$54.62
ROD-ASSY-CONNECTING×2
9200292002-2053
$6.17
BOLT, CONNECTING ROD×4
9203392033-7005
$0.39
RING-SNAP×4
