FH721V-AS01 4 Stroke Engine FH721V

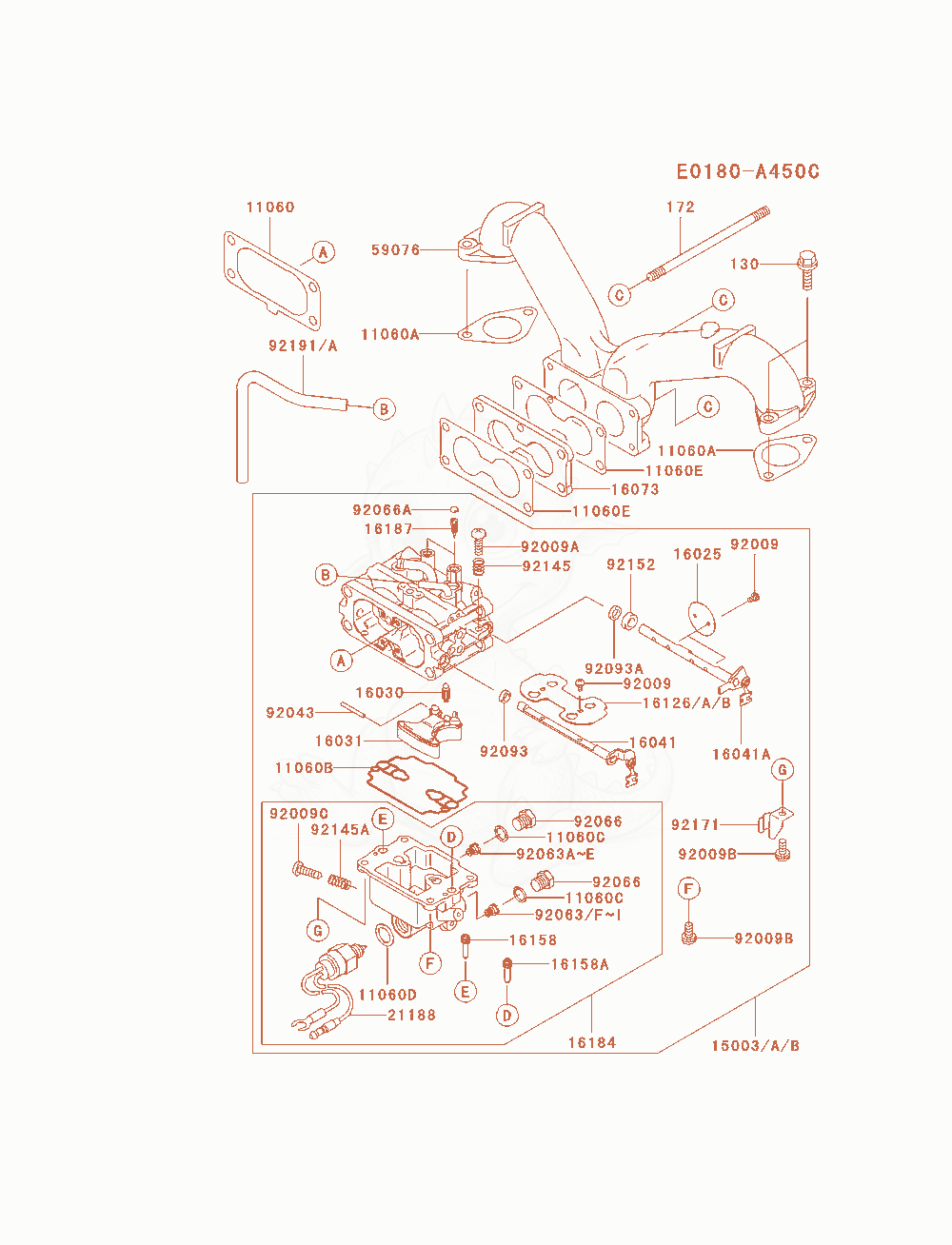

FH721V-AS01 Carburetor Diagram
- GASKET,AIR FILTER×1
- GASKET,MANIFOLD×2
- GASKET,FLOAT CHAMBER×1
- GASKET,MAIN PLUG×2
- GASKET,SOLENOID×1
- GASKET×2
- CARBURETOR-ASSY×0
- CARBURETOR-ASSY×1
- VALVE-THROTTLE×2
- VALVE-FLOAT×1
- FLOAT×1
- SHAFT-CARBURETOR,CHOK×1
- 16041A16041-7014Not stockedSHAFT-CARBURETOR×1
- INSULATOR×1
- 16126A16126-7002Not stockedVALVE,CHOKE×1
- VALVE,CHOKE×0
- 1615816158-7006Not stockedJET-SLOW,#46×1
- 16158A16158-7007Not stockedJET-SLOW,#44×1
- 1618416184-7006Not stockedCHAMBER-ASSY-FLOAT×1
- NEEDLE-JET×2
- SOLENOID×1
- MANIFOLD-INTAKEReplaced by 59076-0048×1
- SCREW×6
- SCREW×1
- SCREW×4
- SCREW,DRAIN×1
- PIN,FLOAT×1
- 9206392063-7010Not stockedJET-MAIN,#136×1
- 92063A92063-7011Not stockedJET-MAIN,#140×1
- JET-MAIN,#133×AR
- JET-MAIN,#133×1
- 92063D92063-7018Not stockedJET-MAIN,#130×AR
- 92063E92063-7018Not stockedJET-MAIN,#130×1
- JET-MAIN,#137×AR
- JET-MAIN,#137×1
- 92063H92063-7020Not stockedJET-MAIN,#134×AR
- 92063I92063-7020Not stockedJET-MAIN,#134×1
- PLUG,MAIN JET×2
