FH721D-HS08 4 Stroke Engine FH721D

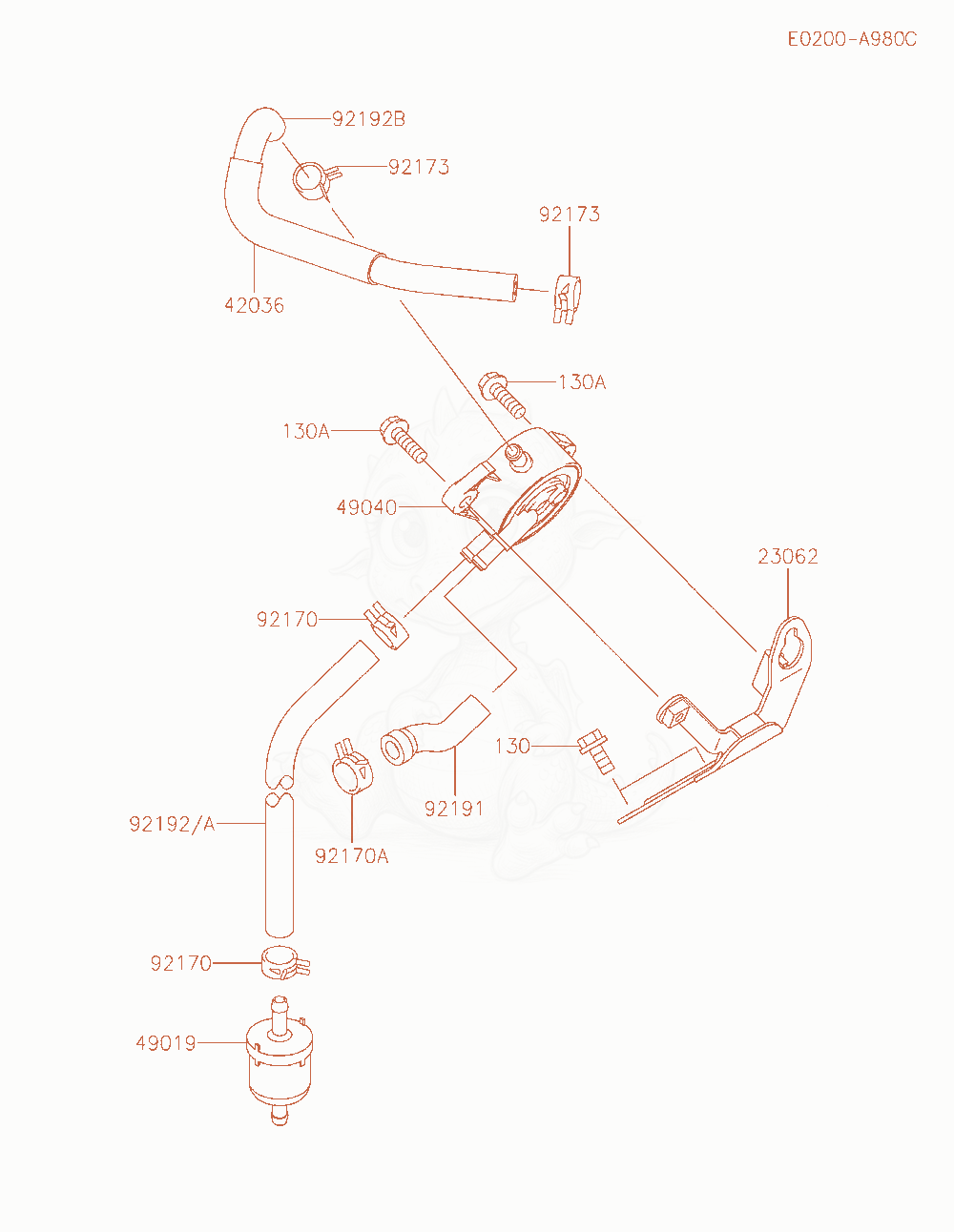

FH721D-HS08 Fuel-Tank / Fuel-Valve Diagram

Exploded parts diagram of the Fuel-Tank / Fuel-Valve of a Kawasaki FH721D-HS08 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2306223062-7019-9HNot stocked
    BRACKET-COMP×1
  • 4203642036-7012
    $1.47
    SLEEVE×1
  • 4901949019-0027
    $8.39
    FILTER-FUELReplaced by 49019-0031×1
  • 4904049040-0769
    $34.16
    PUMP-FUELReplaced by 49040-0801×1
  • 9217092170-2088
    $0.47
    CLAMPReplaced by 92173-1582×2
  • 92170A92170-7003
    $1.12
    CLAMP×1
  • 9217392173-1582
    $3.00
    CLAMP,11.8MM×2
  • 9219192191-7027
    $3.52
    TUBE×1
  • 9219292192-1549Not stocked
    TUBE,6.35X12.7X160×1
  • 92192B92192-2401
    $4.41
    TUBE,6.35X12.7X225×1
  • 130130BA0616Not stocked
    BOLT-FLANGED,6X16×2
  • 130A130BA0620
    $1.59
    BOLT-FLANGED,6X20×2
