FH721D-GS08 4 Stroke Engine FH721D

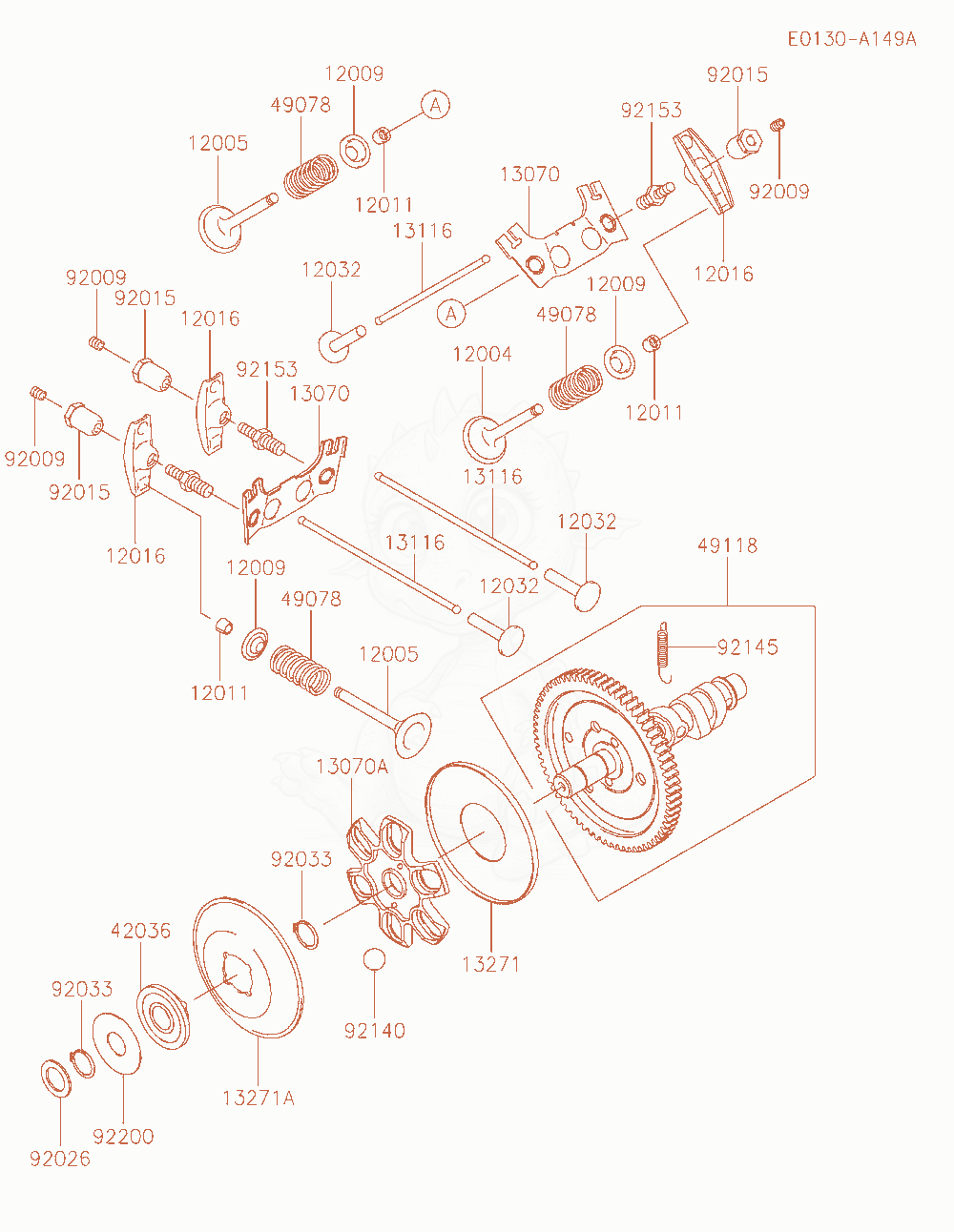

FH721D-GS08 Valve / Camshaft Diagram
- VALVE-INTAKE×2
- VALVE-EXHAUST×2
- RETAINER-VALVE SPRING×4
- COLLET×8
- ARM-ROCKER×4
- TAPPET×4
- GUIDE×2
- GUIDEReplaced by 13070-1578×1
- ROD-PUSH×4
- 1327113271-7007Not stockedPLATE×1
- 13271A13271-7021Not stockedPLATE,GOVERNOR×1
- SLEEVEReplaced by 42036-0907×1
- SPRING-ENGINE VALVE,IN×4
- CAMSHAFT-COMP×1
- SCREW×4
- NUT×4
- SPACER,16.3X25X1.37×1
- RING-SNAP×2
- BALLReplaced by 92140-0035×6
- SPRING×1
- 9215392153-7019Not stockedBOLT×4
- WASHER,16X42X0.91Replaced by 92200-2606×1
