FH721D-DS05 4 Stroke Engine FH721D

FH721D-DS05 Carburetor Diagram

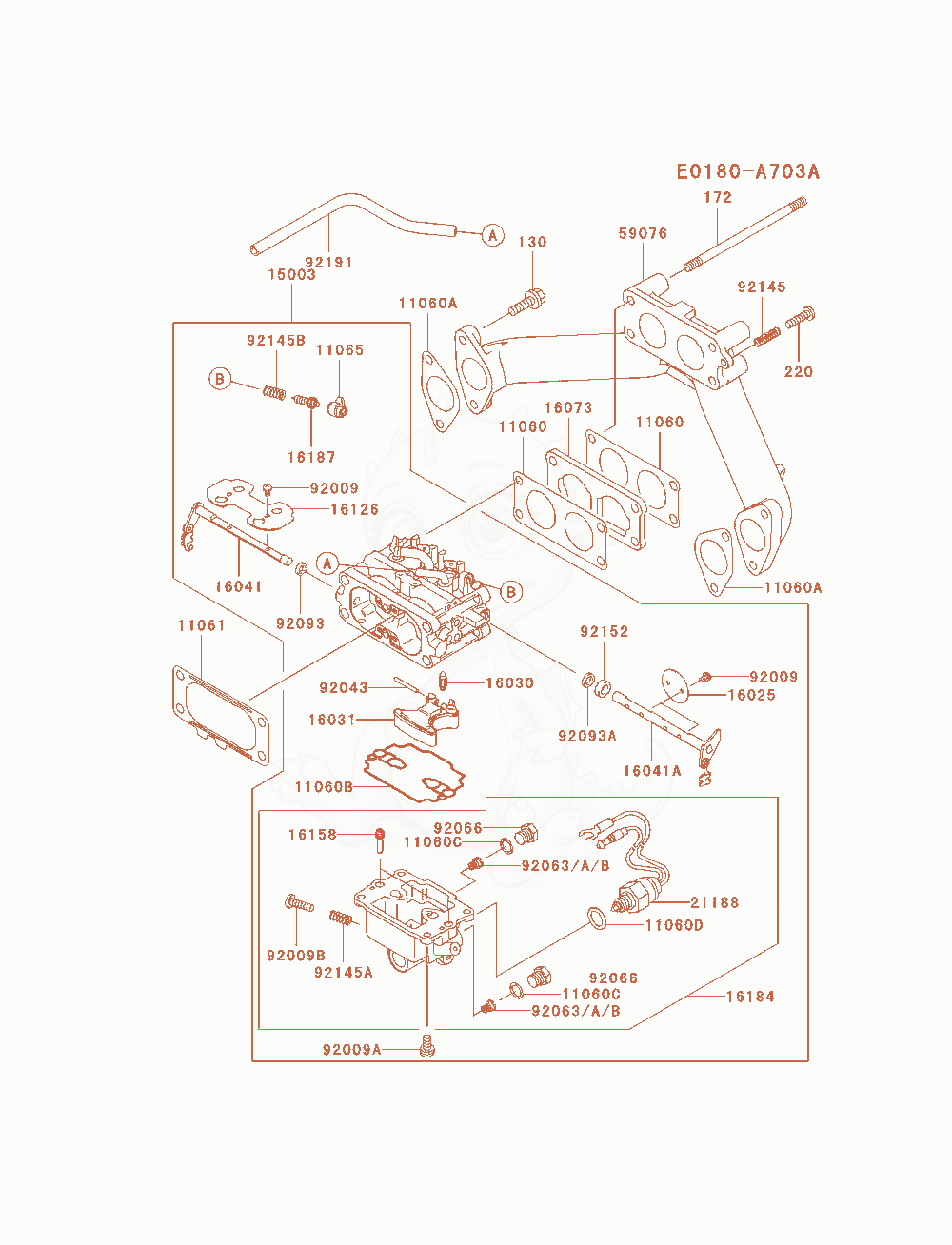

Exploded parts diagram of the Carburetor of a Kawasaki FH721D-DS05 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1106011060-7010
$1.93
GASKET,CARBURETOR×2
11060A11060-7011
$2.02
GASKET,MANIFOLD×2
11060B11060-7018
$0.96
GASKET,FLOAT CHAMBER×1
11060C11060-7019
$1.47
GASKET,MAIN PLUG×2
11060D11060-7020
$0.84
GASKET,SOLENOID×1
1106111061-7042
$2.66
GASKET,AIR FILTER×1
1106511065-7004
$20.98
CAP,LIMITTER×2
1500315003-7042
$452.85
CARB-ASSY×1
1602516025-7002
$23.39
VALVE-THROTTLE×2
1603016030-7002
$17.54
VALVE-FLOAT×1
1603116031-7001
$28.03
FLOAT×1
1604116041-7060
$31.05
SHAFT-CARBURETOR,CHOK×1
16041A16041-7012
$31.28
SHAFT-CARB×1
1607316073-7003
$4.22
INSULATORReplaced by 16073-0874×1
1612616126-7004
$6.07
VALVE,CHOKE×1
1615816158-7003
$28.23
JET-SLOW,#56×2
1618416184-7005
$286.45
CHAMBER-ASSY-FLOAT×1
1618716187-7003
$13.44
NEEDLE-JET×2
2118821188-7001
$166.73
SOLENOID×1
5907659076-7015Not stocked
MANIFOLD-INTAKE×1
9200992009-7003
$0.96
SCREW×6
92009A92009-7005
$1.40
SCREW×4
92009B92009-7006
$1.40
SCREW,DRAIN×1
9204392043-7004
$6.43
PIN,FLOAT×1
9206392063-7012
$20.93
JET-MAIN,#108,3280FT×2
92063A92063-7013
$19.71
JET-MAIN,#105×AR
92063B92063-7014
$19.76
JET-MAIN,#102×AR
9206692066-7008
$4.03
PLUG,MAIN JET×2
9209392093-7001
$2.12
SEAL,D=5.9×1
92093A92093-7002
$1.93
SEAL,D=6.9×1
9214592145-7005
$0.80
SPRING×1
92145A92145-7011
$2.52
SPRING×1
92145B92145-7013
$2.53
SPRING×2
9215292152-7002
$10.62
COLLAR×1
9219192191-7010
$1.31
TUBE,4.76X6.35X160×1
130130B0620
$3.06
BOLT-FLANGED,6X20Replaced by 130AA0620×4
172172G06105
$3.75
BOLT-STUD,6X105Replaced by 172BA06105×2
220220B0520
$0.57
SCREW-PAN-CROS,5X20Replaced by 220AA0520×1
