FH721D-AS05 4 Stroke Engine FH721D

FH721D-AS05 Cylinder / Crankcase Diagram

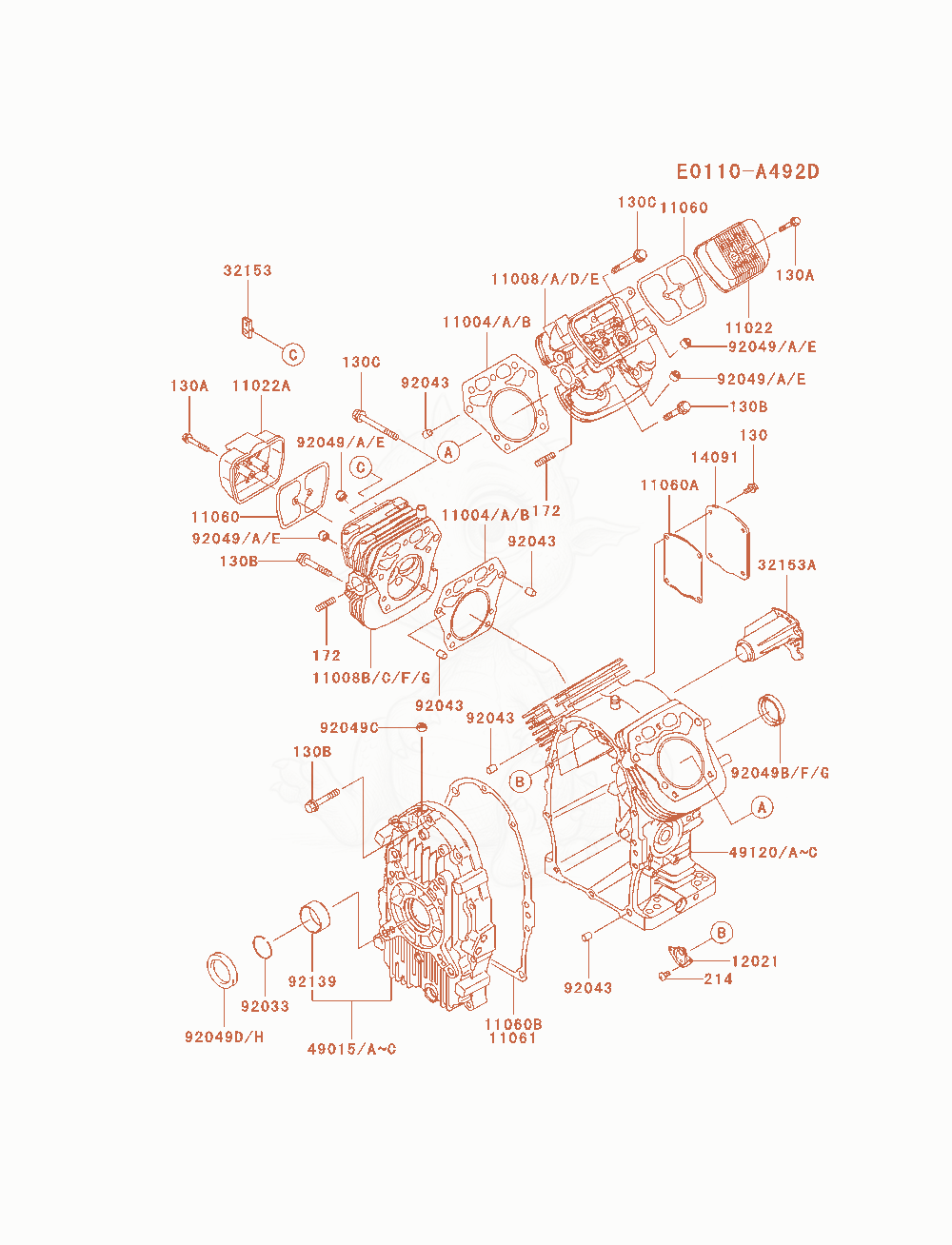

Exploded parts diagram of the Cylinder / Crankcase of a Kawasaki FH721D-AS05 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1100411004-7006
    $24.14
    GASKET-HEAD×0
  • 11004B11004-7006
    $24.14
    GASKET-HEAD×2
  • 1100811008-7023
    $246.17
    HEAD-COMP-CYLINDER,#2×1
  • 11008B11008-7024
    $245.57
    HEAD-COMP-CYLINDER,#1×1
  • 1102211022-0728
    $13.42
    CASE-ROCKER×1
  • 11022A11022-7004Not stocked
    CASE-ROCKER×1
  • 1106011060-7013
    $10.26
    GASKET,ROCKER CASE×2
  • 11060A11060-7014
    $5.50
    GASKET,BREATHER×1
  • 11060B11061-7047Not stocked
    GASKET,CRANKCASE×1
  • 1202112021-7002
    $4.28
    VALVE-ASSY-REED×1
  • 1409114091-7004
    $3.21
    COVER×1
  • 3215332153-7003
    $1.79
    PIPE×1
  • 32153A32153-7004Not stocked
    PIPE×1
  • 4901549015-6265
    $148.95
    COVER-CRANKCASE×1
  • 4912049120-6163Not stocked
    CRANKCASE-COMP×0
  • 49120B49120-6163Not stocked
    CRANKCASE-COMP×1
  • 9203392033-7004
    $0.85
    RING-SNAP×1
  • 9204392043-7001
    $0.51
    PIN×6
  • 92049A92049-7001
    $7.19
    SEAL-OIL,RVC2 6X11X10.2Replaced by 92049-0862×4
  • 92049B92049-7010
    $5.54
    SEAL-OIL,SD 35X48X8 R HS×0
  • 92049C92049-7005Not stocked
    SEAL-OIL,SO 8X14X5 HS×1
  • 92049D92049-7022
    $4.65
    SEAL-OIL,SD-40-55-8-L-HS×1
  • 92049E92049-7001
    $7.19
    SEAL-OIL,RVC2 6X11X10.2Replaced by 92049-0862×0
  • 92049G92049-7010
    $5.54
    SEAL-OIL,SD 35X48X8 R HS×1
