FH680V-ES32 4 Stroke Engine FH680V

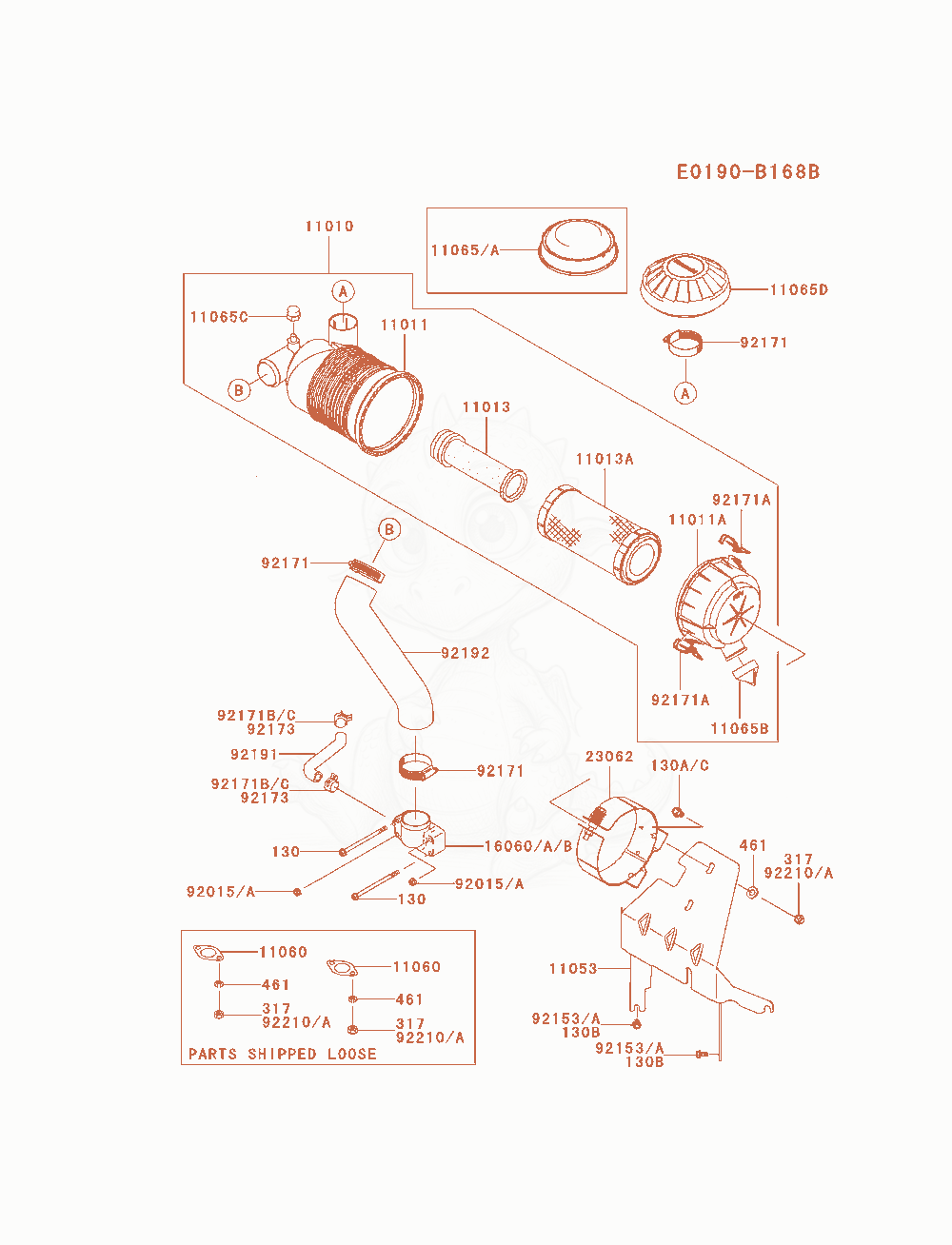

FH680V-ES32 Air-Filter / Muffler Diagram
- 1101011010-7032Not stockedFILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- BRACKET×1
- GASKET,MUFFLER×2
- CAPReplaced by 11065-1384×0
- CAP×1
- CAP×1
- CAPReplaced by 11065-1384×1
- PIPE-INTAKEReplaced by 16060-0763×0
- PIPE-INTAKEReplaced by 16060-0763×1
- BRACKET-COMP×1
- NUT,FLANGED,6MM×2
- 9215392153-7043Not stockedBOLT,6X12×2
- CLAMP×3
- CLAMP×2
- 92171C92171-7013Not stockedCLAMP×0
- CLAMP×2
- 9219192191-7006Not stockedTUBE×1
- TUBE×1
- NUT,M8×6
- BOLT-FLANGED,6X105×2
- 130A130AA0814Not stockedBOLT-FLANGED,8X14×2
- WASHER-SPRING,8MM×6
