FH680V-AS22 4 Stroke Engine FH680V

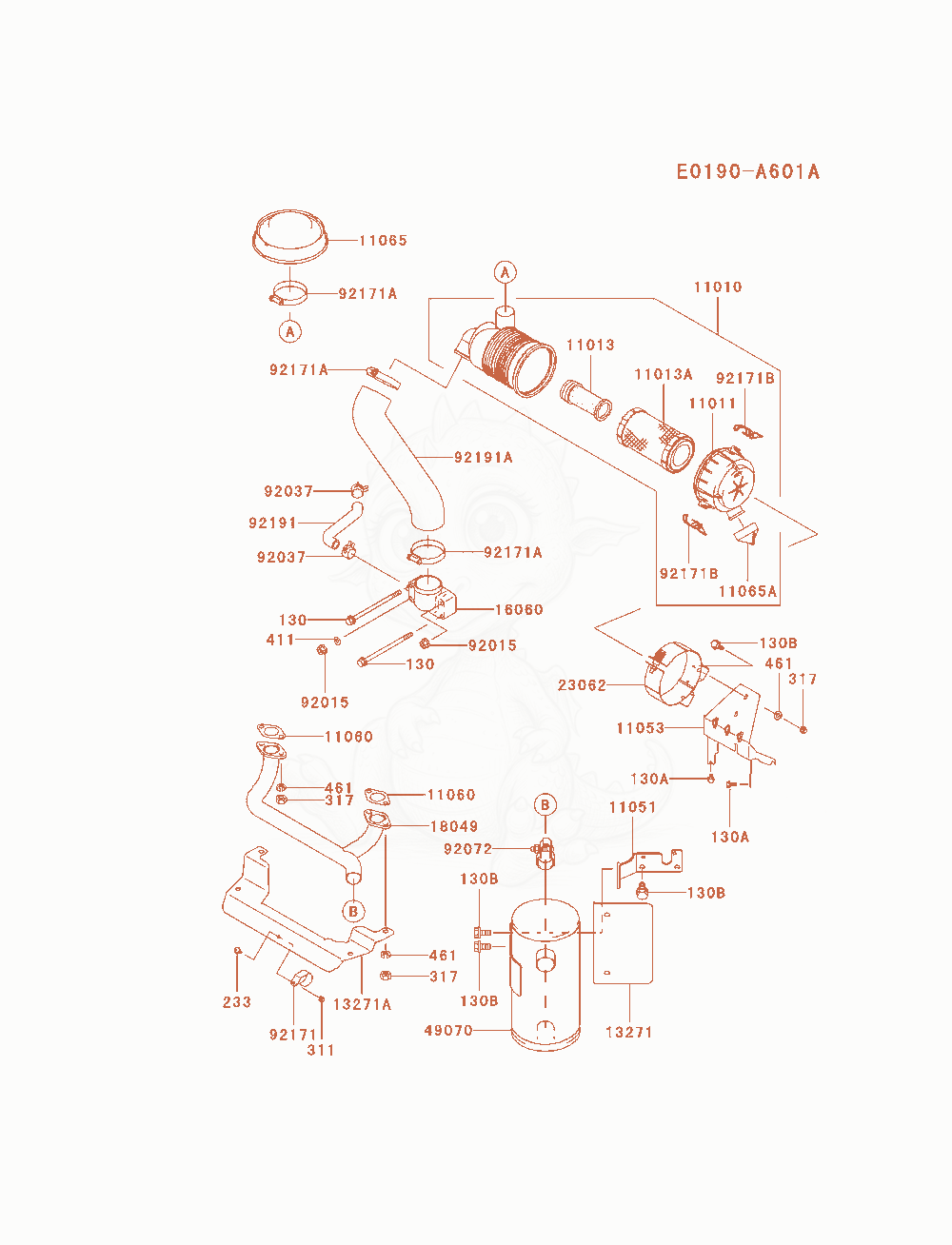

FH680V-AS22 Air-Filter / Muffler Diagram
- 1101011010-7032Not stockedFILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- BRACKET×1
- BRACKET×1
- GASKET,MUFFLER×2
- CAPReplaced by 11065-1384×1
- CAP×1
- PLATE×1
- PLATE×1
- PIPE-INTAKEReplaced by 16060-0763×1
- 1804918088-7007Not stockedPIPE-EXHAUST×1
- BRACKET-COMP×1
- 4907049070-7013Not stockedMUFFLER-COMP×1
- NUT,FLANGED,6MM×2
- CLAMP×2
- BAND×1
- CLAMP×1
- CLAMP×3
- CLAMP×2
- 9219192191-7006Not stockedTUBE×1
- TUBE×1
- BOLT-FLANGED,6X105Replaced by 130AA06105×2
- BOLT-FLANGED,6X12Replaced by 130AA0612×2
- BOLT-FLANGED,8X16Replaced by 130AA0816×5
- SCREW-PAN-WP,4X16Replaced by 233AA0416×1
- NUT-HEX,4MM×1
- NUT-HEX-SMALL,8MM×6
- WASHER-PLAIN,6MMReplaced by 411AA0600×1
- WASHER-SPRING,8MM×6
