FH680V-AS14 4 Stroke Engine FH680V

FH680V-AS14 Piston / Crankshaft Diagram

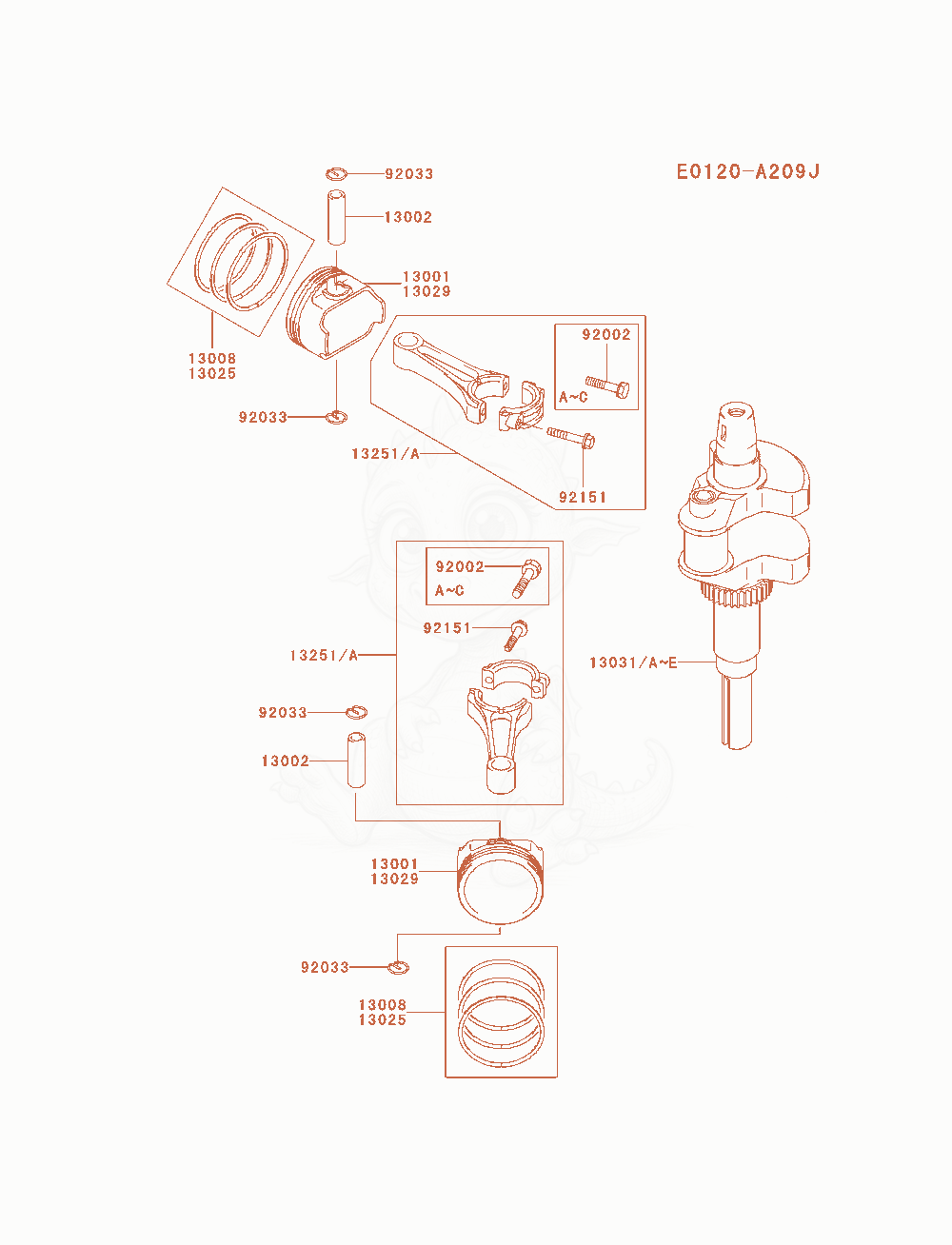

Exploded parts diagram of the Piston / Crankshaft of a Kawasaki FH680V-AS14 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1300113001-7007
    $38.08
    PISTON-ENGINE×2
  • 1300213002-7001
    $4.18
    PIN-PISTON×2
  • 1300813008-6058
    $71.43
    RING-SET-PISTON×2
  • 1302513025-7002
    $47.88
    RING-SET-PISTON L,0.50×AR
  • 1302913029-7003
    $81.97
    PISTON-ENGINE L,0.50×AR
  • 1303113031-7023Not stocked
    CRANKSHAFT-COMP×0
  • 13031C13031-7023Not stocked
    CRANKSHAFT-COMP×1
  • 13251A13251-0715
    $54.62
    ROD-ASSY-CONNECTING×2
  • 9200292002-2053
    $6.17
    BOLT, CONNECTING ROD×4
  • 9203392033-7005
    $0.39
    RING-SNAP×4
