FH680V-AS13 4 Stroke Engine FH680V

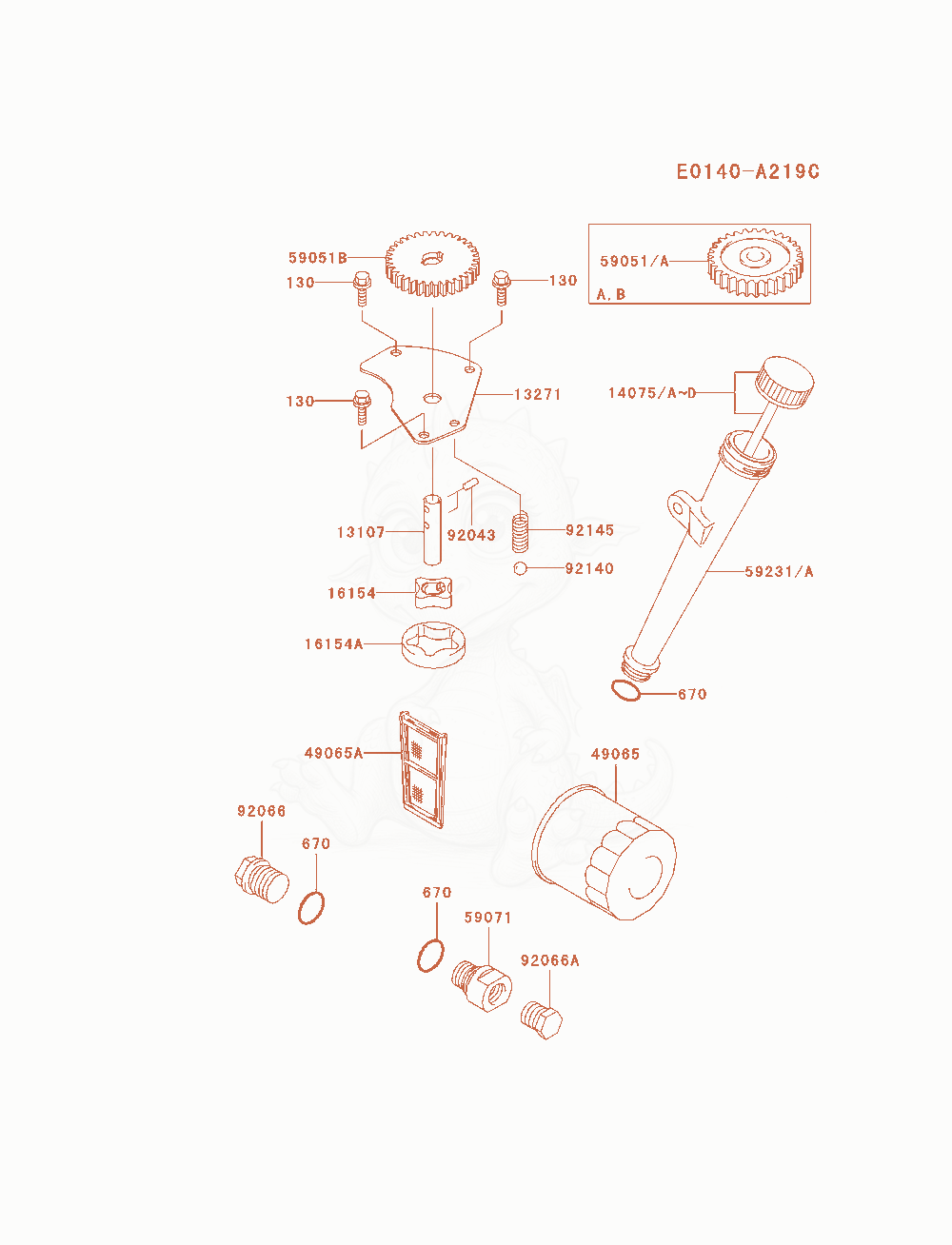

FH680V-AS13 Lubrication-Equipment Diagram

Exploded parts diagram of the Lubrication-Equipment of a Kawasaki FH680V-AS13 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1310713107-0749Not stocked
    SHAFT×1
  • 1327113271-7005Price
    PLATEReplaced by 13272-7071×1
  • 1407514075-7008Not stocked
    CAP-ASSY×1
  • 1615416154-2053Price
    ROTOR-PUMP,IN×1
  • 16154A16154-2054Price
    ROTOR-PUMP,OUT×1
  • 4906549065-0724Price
    FILTER-OILReplaced by 49065-0734×1
  • 49065A49065-7003Price
    OIL FILTER SCREEN×1
  • 5905159051-6001Not stocked
    GEAR-SPUR×1
  • 5907159071-7023Price
    JOINT×1
  • 5923159231-7006Price
    FILLER×1
  • 9204392043-7003Not stocked
    PIN×2
  • 9206692066-7003Not stocked
    PLUG×1
  • 92066A92066-0827Not stocked
    PLUG×1
  • 9214092140-7003Price
    BALL,STEEL,13/32Replaced by 92140-0029×1
  • 9214592145-7002Not stocked
    SPRING×1
  • 130130B0612Price
    BOLT-FLANGED,6X12Replaced by 130AA0612×3
  • 670670D2016Price
    O RING,16MM×3
