FH680V-AS12 4 Stroke Engine FH680V

FH680V-AS12 Electric-Equipment Diagram

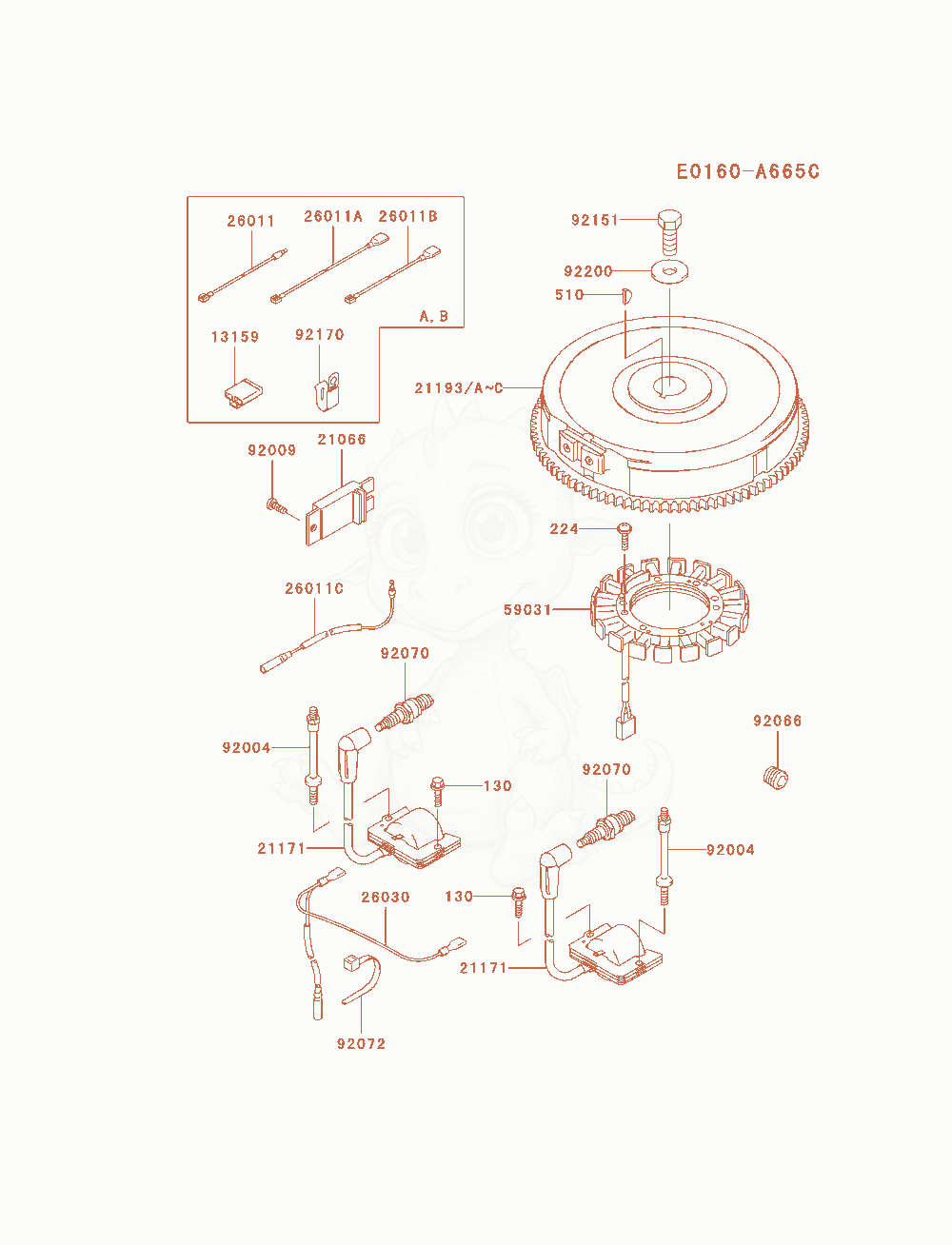

Exploded parts diagram of the Electric-Equipment of a Kawasaki FH680V-AS12 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 9206692066-0881
    $3.71
    PLUG×1
  • 92070BPR4ES
    $4.98
    PLUG-SPARK,BPR4ES(NGK×2
  • 9207292072-7003
    $1.12
    BAND×2
  • 9215192151-2097Not stocked
    BOLT,12X30×1
  • 9217092171-7008Not stocked
    CLAMP×1
  • 9220092200-7002
    $2.81
    WASHERReplaced by 92200-2535×1
  • 130130B0620
    $3.06
    BOLT-FLANGED,6X20Replaced by 130AA0620×2
  • 224224B0520
    $0.37
    SCREW-PAN-WP-CROS,5X20Replaced by 224AA0520×4
  • 510510A5100
    $2.96
    KEY-WOODRUFF×1
  • 1315913159-7001
    $1.04
    CONNECTOR×1
  • 2106621066-7011
    $70.15
    REGULATOR-VOLTAGEReplaced by 21066-0816×1
  • 2117121171-7034
    $73.08
    COIL-ASSY-IGNITION×2
  • 2119321193-7020
    $165.08
    FLYWHEEL-ASSYReplaced by 21193-0027×1
  • 2601126011-7002
    $2.42
    WIRE-LEAD×1
  • 26011A26011-7003Not stocked
    WIRE-LEAD×1
  • 26011B26011-7004Not stocked
    WIRE-LEAD×1
  • 26011C26011-7008
    $3.42
    WIRE-LEAD,L=540×1
  • 2603026030-7002
    $10.30
    HARNESS×1
  • 5903159031-7009
    $117.11
    COIL-CHARGINGReplaced by 59031-7017×1
  • 9200492004-7026
    $4.33
    STUD,6X100.6×2
  • 9200992009-2308
    $0.32
    SCREW×1
