FH680V-AS10 4 Stroke Engine FH680V

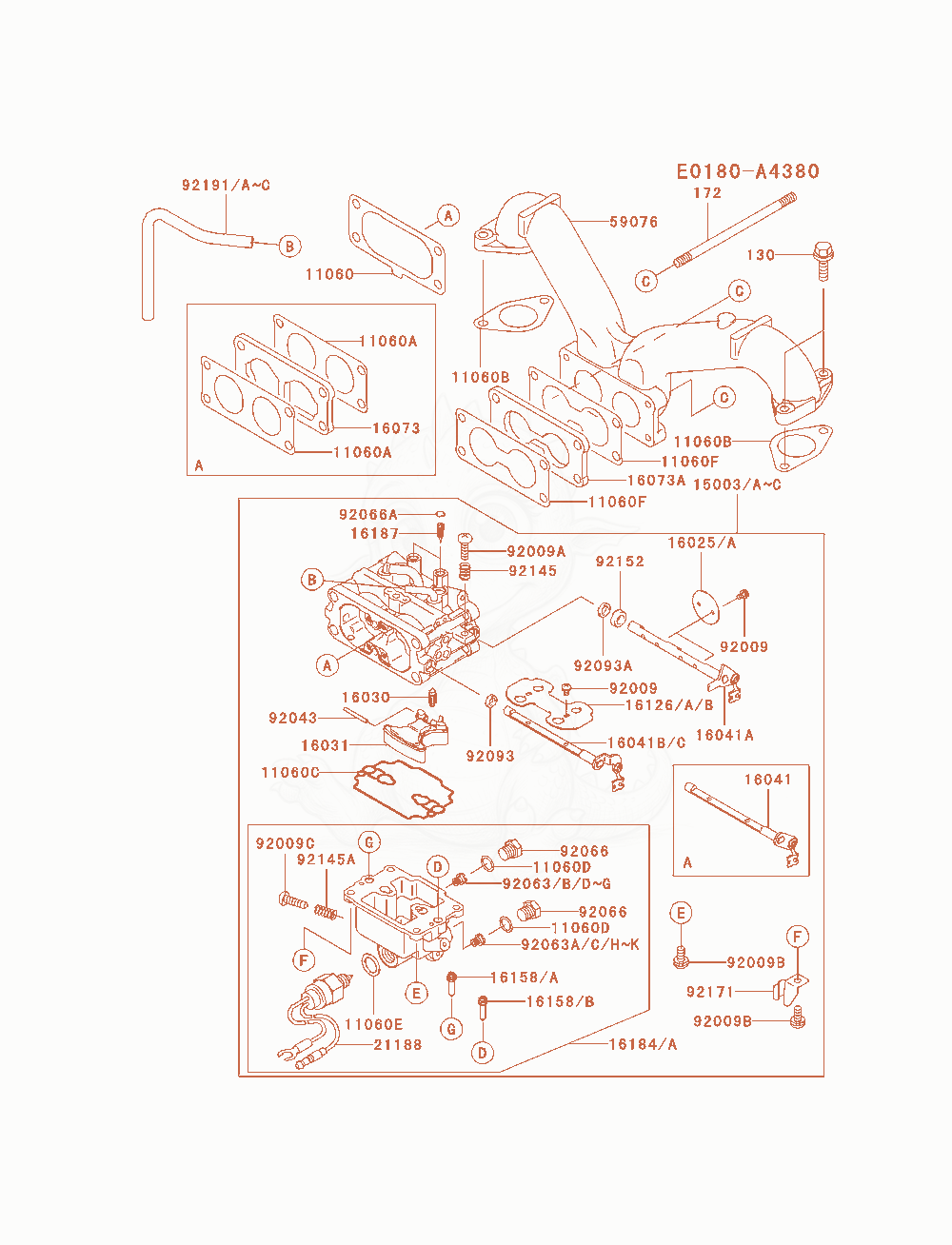

FH680V-AS10 Carburetor Diagram

Exploded parts diagram of the Carburetor of a Kawasaki FH680V-AS10 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1106011060-7009
    $1.83
    GASKET,AIR FILTER×1
  • 11060A11060-7010
    $1.93
    GASKET,CARBURETOR×2
  • 11060B11060-7011
    $2.02
    GASKET,MANIFOLD×2
  • 11060C11060-7018
    $0.96
    GASKET,FLOAT CHAMBER×1
  • 11060D11060-7019
    $1.47
    GASKET,MAIN PLUG×2
  • 11060E11060-7020
    $0.84
    GASKET,SOLENOID×1
  • 1500315003-7022Not stocked
    CARBURETOR-ASSY×1
  • 15003A99996-6098Not stocked
    KIT,CARBURETOR×1
  • 1602516025-7001Not stocked
    VALVE-THROTTLE×2
  • 1603016030-7002
    $17.54
    VALVE-FLOAT×1
  • 1603116031-7001
    $28.03
    FLOAT×1
  • 1604116041-7057Not stocked
    SHAFT-CARBURETOR,CHOK×1
  • 16041A16041-7004Not stocked
    SHAFT-CARBURETOR×1
  • 16041C16041-7059
    $40.40
    SHAFT-CARBURETOR,CHOK×1
  • 1607316073-7003
    $4.22
    INSULATORReplaced by 16073-0874×1
  • 16126A16126-7004
    $6.07
    VALVE,CHOKE×1
  • 1615816158-7003
    $28.23
    JET-SLOW,#56×2
  • 1618416184-7003Not stocked
    CHAMBER-ASSY-FLOAT×1
  • 1618716187-7002
    $11.61
    NEEDLE-JET×2
  • 2118821188-7001
    $166.73
    SOLENOID×1
  • 5907659076-0026
    $122.35
    MANIFOLD-INTAKEReplaced by 59076-0048×1
  • 9200992009-7003
    $0.96
    SCREW×6
  • 92009A92009-7004
    $1.29
    SCREW×1
  • 92009B92009-7005
    $1.40
    SCREW×4
  • 92009C92009-7006
    $1.40
    SCREW,DRAIN×1
