FH680V-AS05 4 Stroke Engine FH680V

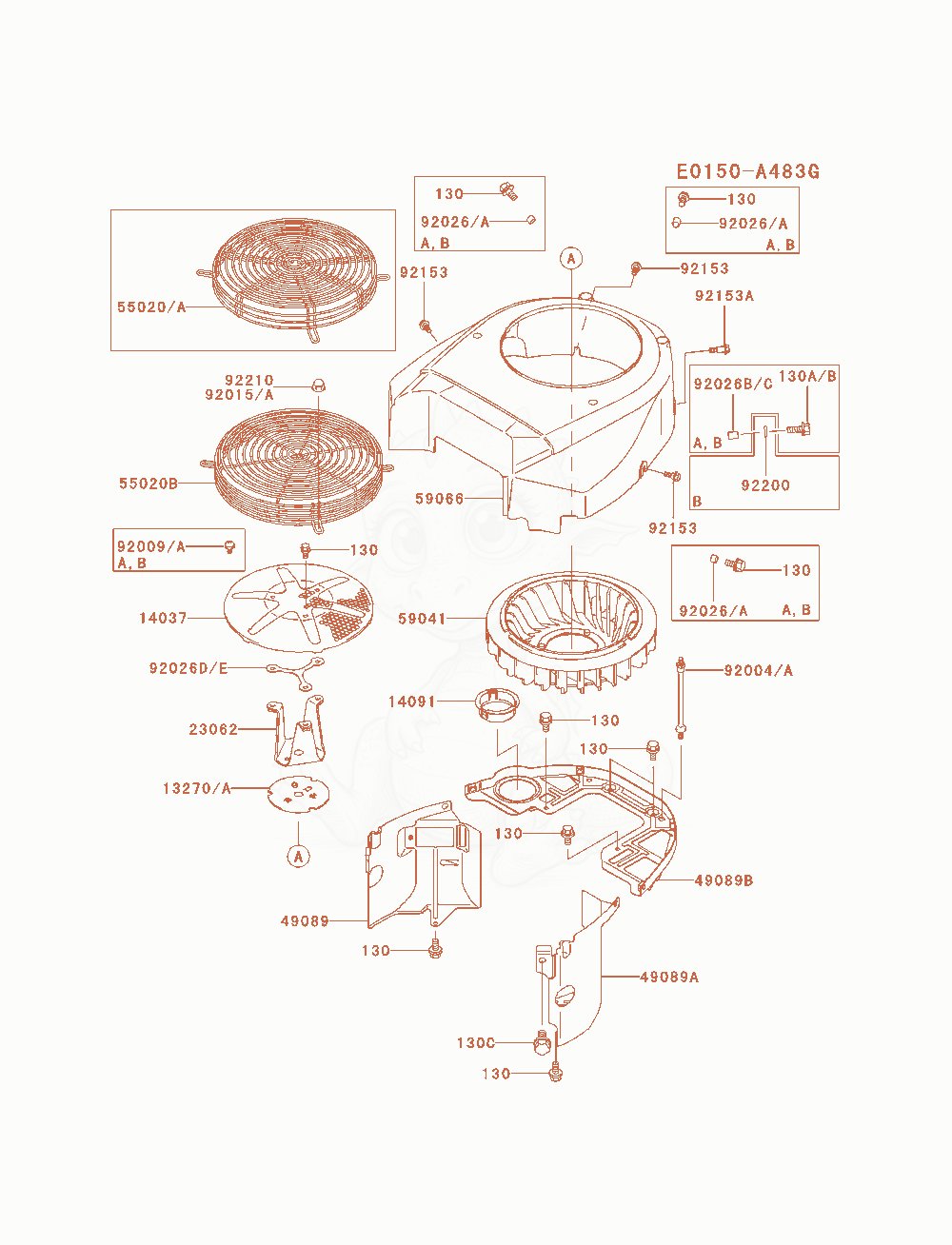

FH680V-AS05 Cooling-Equipment Diagram
- PLATE×1
- SCREEN×1
- COVER×1
- BRACKET-COMP×1
- SHROUD-ENGINE×1
- SHROUD-ENGINE×1
- SHROUD-ENGINE×1
- GUARD×1
- FAN×1
- HOUSING-FAN×1
- STUD,6X137.5×2
- BOLT-FLANGED,6X12×3
- NUT×4
- BOLT,FLANGED,6X16×3
- 92026B92026-7003Not stockedSPACER,6.5X7.9X10.5×1
- SPACER×AR
- BOLT-FLANGED,6X12Replaced by 130AA0612×9
- BOLT-FLANGED,6X20Replaced by 130AA0620×1
- BOLT-FLANGED,8X16Replaced by 130AA0816×1
