FH680V-AS04 4 Stroke Engine FH680V

FH680V-AS04 Control-Equipment Diagram

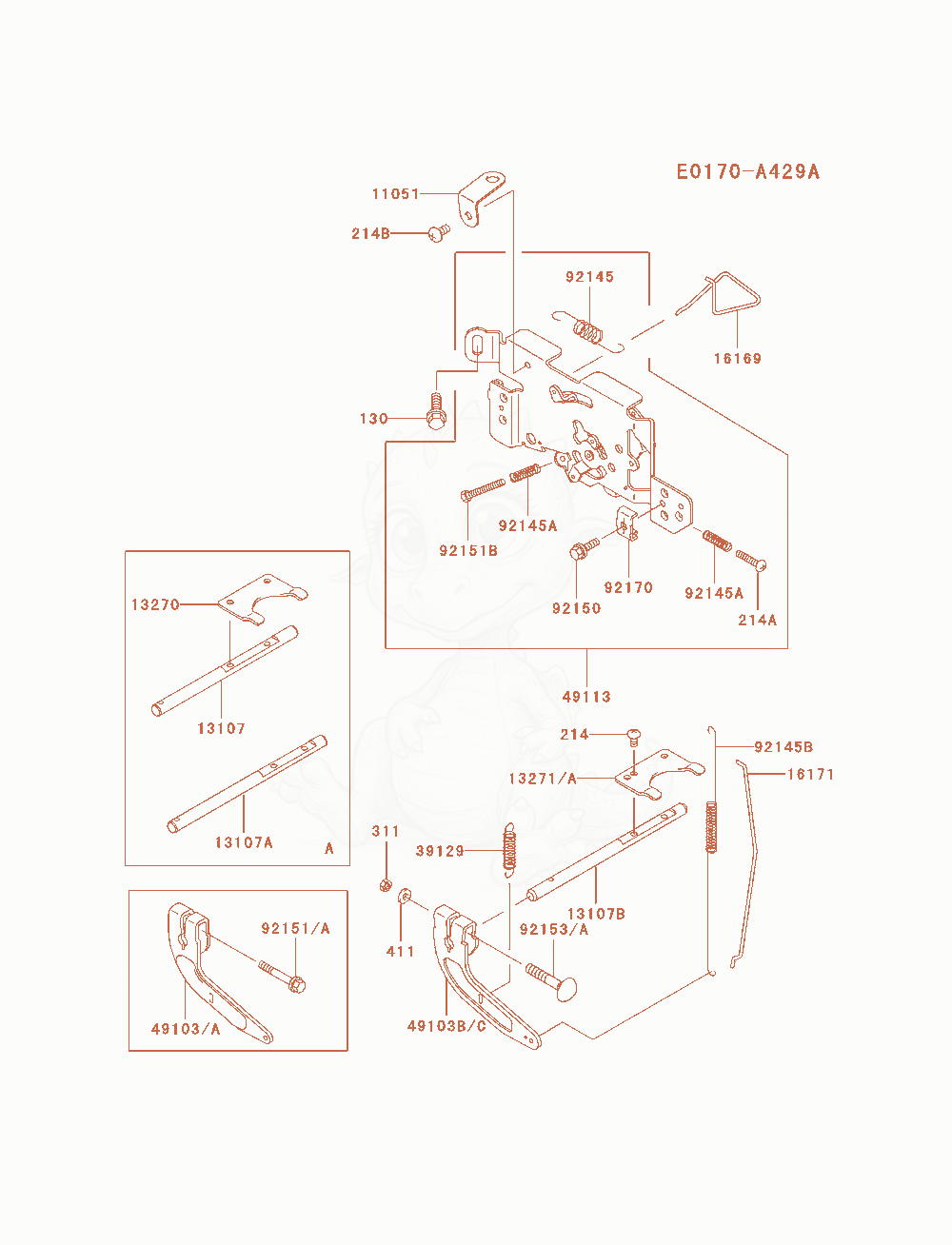

Exploded parts diagram of the Control-Equipment of a Kawasaki FH680V-AS04 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1310799996-6065Not stocked
    KIT,GOVERNOR SHSFT×1
  • 13107A13107-7055Not stocked
    SHAFT×1
  • 1327013271-7032
    $3.21
    PLATE×0
  • 13271A13271-7032
    $3.21
    PLATE×1
  • 1616916169-7006
    $2.87
    LINK-CHOKEReplaced by 16169-0009×1
  • 1617116171-7004
    $1.92
    LINKReplaced by 16171-0040×1
  • 3912939129-7004
    $4.64
    SPRING-GOVERNOR×1
  • 4910349103-7004
    $6.81
    ARM-GOVERNOR×1
  • 4911349113-7016Not stocked
    PANEL-COMP-CONTROL×1
  • 9214592145-7004Not stocked
    SPRING×1
  • 92145A92145-7005
    $0.80
    SPRING×2
  • 92145B92145-7034
    $2.85
    SPRING×1
  • 9215092150-2182
    $0.32
    BOLT,5X18×1
  • 9215192154-2697
    $0.88
    BOLT,6X35×1
  • 92151B92151-7014
    $1.09
    BOLT,5X30×1
  • 9217092170-7001
    $2.31
    CLAMP×1
  • 130130B0612
    $0.59
    BOLT-FLANGED,6X12Replaced by 130AA0612×2
  • 214214B0408
    $4.13
    SCREW-PAN,4X8Replaced by 214AA0408×2
  • 214A214B0425
    $1.27
    SCREW-PAN,4X25Replaced by 214AA0425×1
  • 311311AA0600
    $0.83
    NUT-HEX,6MM×1
  • 411411B0600
    $3.68
    WASHER-PLAIN,6MMReplaced by 411AA0600×1
