FH680V-AS01 4 Stroke Engine FH680V

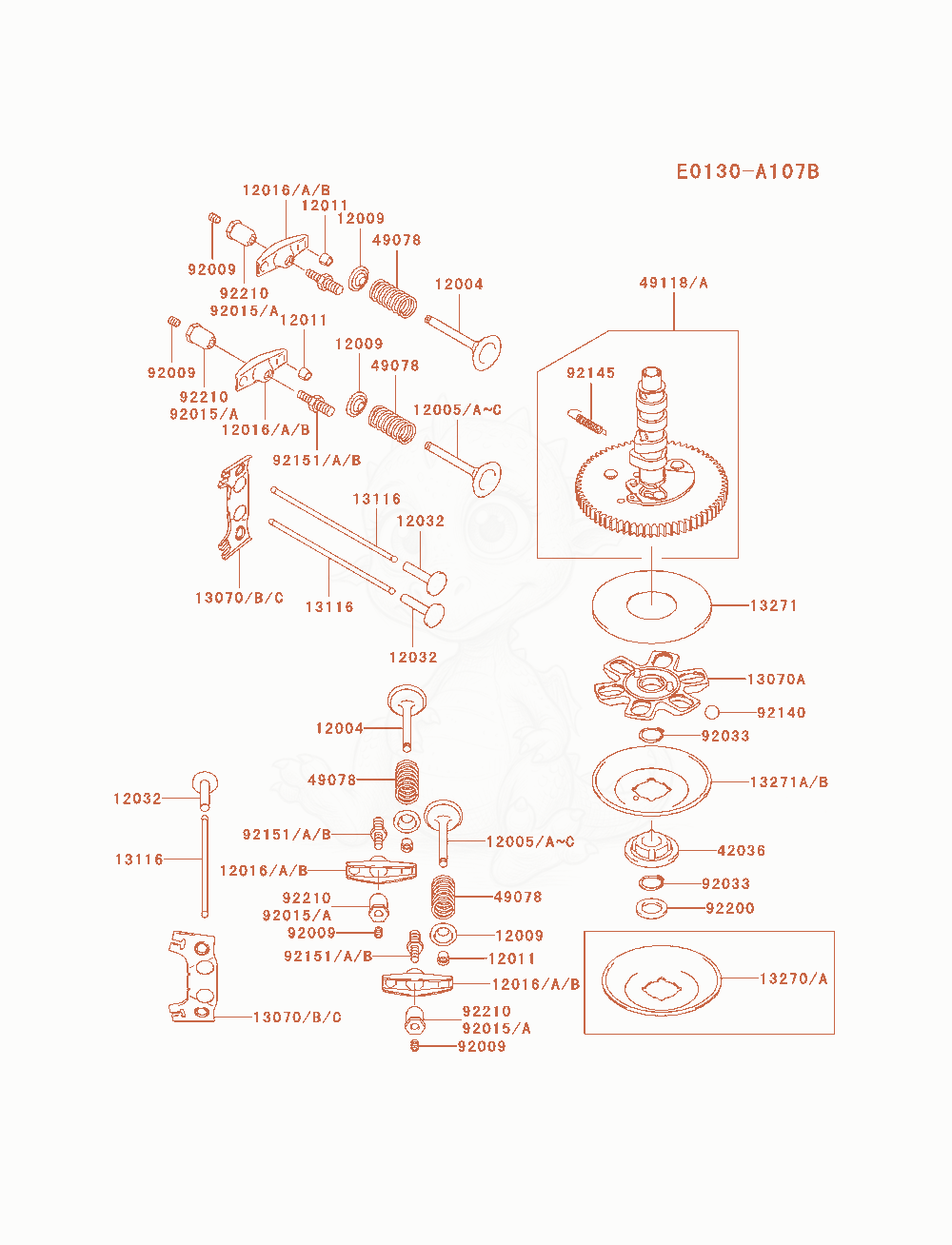

FH680V-AS01 Valve / Camshaft Diagram
- VALVE-INTAKE×2
- VALVE-EXHAUST×2
- RETAINER-VALVE SPRING×4
- COLLET×8
- ARM-ROCKER×0
- ARM-ROCKER×4
- TAPPET×4
- GUIDE×0
- GUIDEReplaced by 13070-1577×1
- GUIDE×2
- ROD-PUSH×4
- 1327013271-7021Not stockedPLATE,GOVERNOR×1
- 1327113271-7007Not stockedPLATE×1
- SLEEVEReplaced by 42036-0907×1
- SPRING-ENGINE VALVE,IN×4
- KIT.,CAMSHAFT-COMP×1
- SCREW×4
- NUT×4
- 9203392033-7001Not stockedRING-SNAP×2
- BALLReplaced by 92140-0035×6
- 9214592145-7001Not stockedSPRING×1
- 9215192153-7019Not stockedBOLT×4
- WASHER×1
- NUT×0
