FH680D-FS08 4 Stroke Engine FH680D

FH680D-FS08 Lubrication-Equipment Diagram

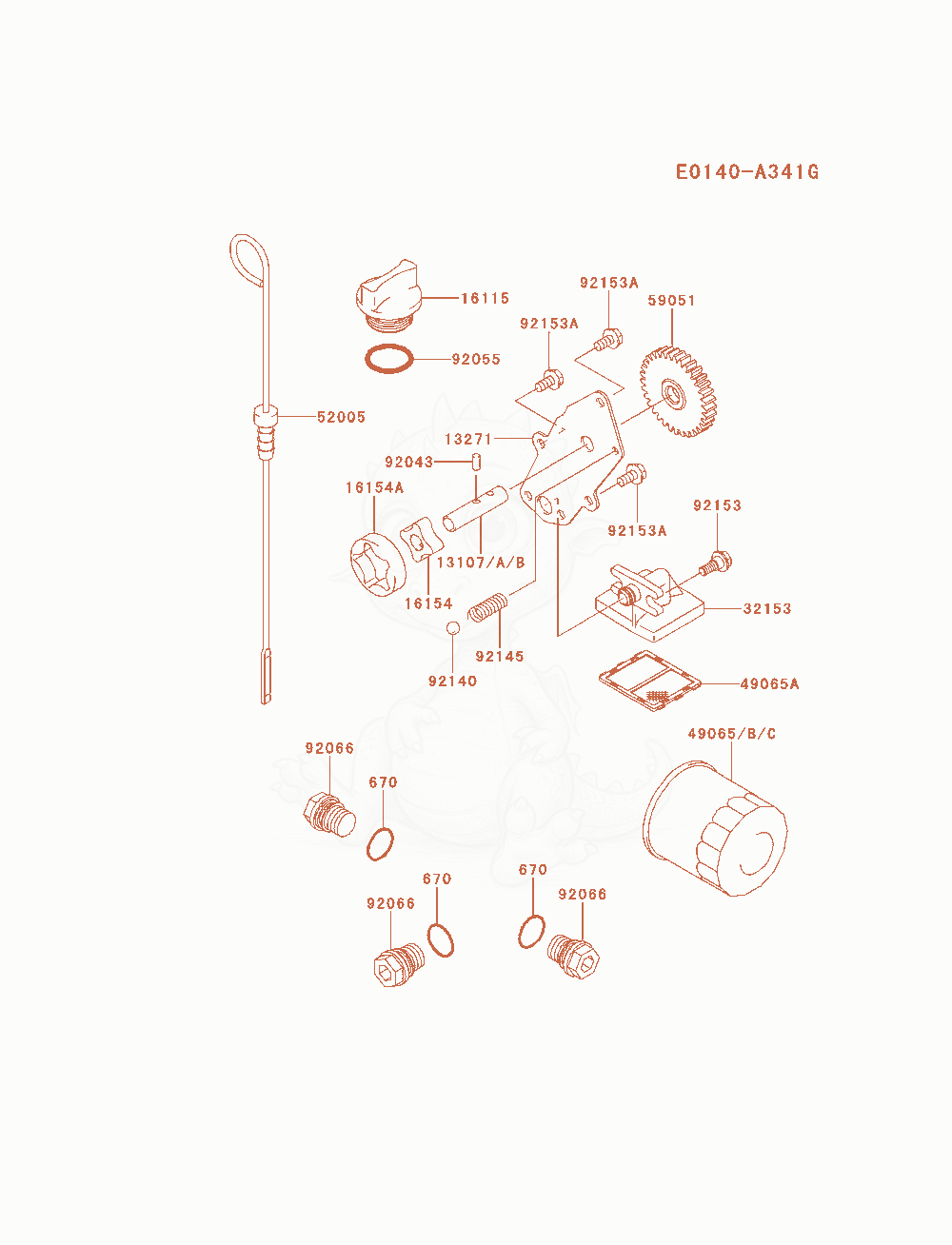

Exploded parts diagram of the Lubrication-Equipment of a Kawasaki FH680D-FS08 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1310713107-0749Not stocked
    SHAFT×1
  • 1327113271-7014Price
    PLATE×1
  • 1611516115-7001Price
    CAP-OIL FILLERReplaced by 16115-0045×1
  • 1615416154-2053Price
    ROTOR-PUMP,IN×1
  • 16154A16154-2054Price
    ROTOR-PUMP,OUT×1
  • 3215332153-7002Price
    PIPEReplaced by 32156-0518×1
  • 49065A49065-0717Price
    FILTER-OIL×1
  • 49065B49065-0724Price
    FILTER-OILReplaced by 49065-0734×1
  • 5200552005-7003Price
    GAUGE×1
  • 5905159051-7011Price
    GEAR-SPUR×1
  • 9204392043-7003Not stocked
    PIN×2
  • 9205592055-7004Price
    RING-O×1
  • 9206692066-7003Not stocked
    PLUG×3
  • 9214092140-7003Price
    BALL,STEEL,13/32Replaced by 92140-0029×1
  • 9214592145-7002Not stocked
    SPRING×1
  • 9215392153-7007Price
    BOLT,FLANGED,6X16×2
  • 92153A92153-7043Not stocked
    BOLT,6X12×3
  • 670670D2016Price
    O RING,16MM×3
