FH680D-AS05 4 Stroke Engine FH680D

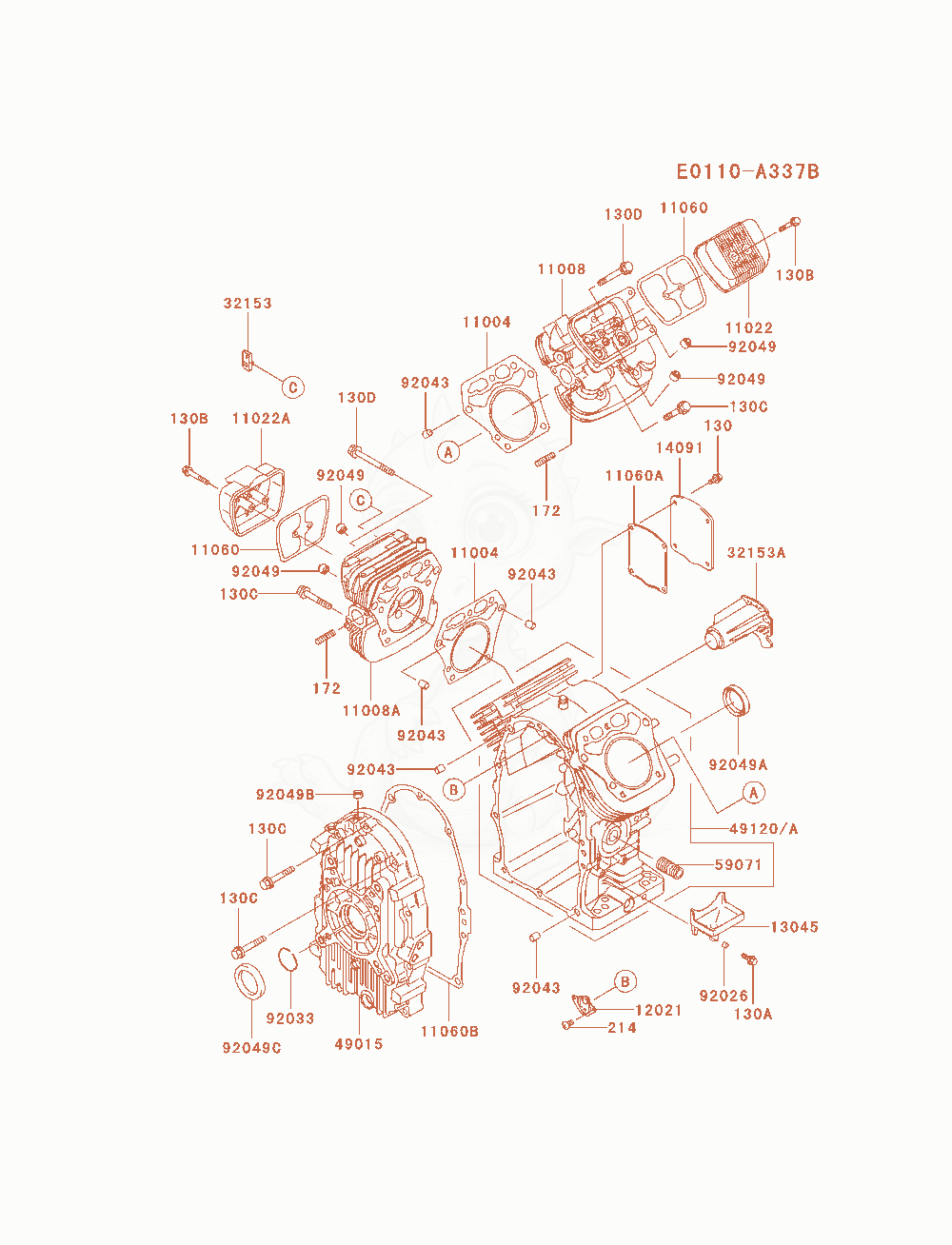

FH680D-AS05 Cylinder / Crankcase Diagram
- GASKET-HEAD×2
- HEAD-COMP-CYLINDER,#2×1
- HEAD-COMP-CYLINDER,#1×1
- CASE-ROCKER×1
- 11022A11022-7004Not stockedCASE-ROCKER×1
- GASKET,ROCKER CASE×2
- GASKET,BREATHER×1
- 11060B11061-7047Not stockedGASKET,CRANKCASE×1
- VALVE-ASSY-REED×1
- RECEIVER-OIL×1
- COVER×1
- PIPE×1
- 32153A32153-7004Not stockedPIPE×1
- COVER-CRANKCASE×1
- 4912049120-6133Not stockedCRANKCASE-COMP×1
- JOINT×1
- BOLT,FLANGED,6X16×2
- RING-SNAP×1
- PIN×6
- SEAL-OIL,RVC2 6X11X10.2Replaced by 92049-0862×4
- SEAL-OIL,SD 35X48X8 R HS×1
- 92049B92049-7005Not stockedSEAL-OIL,SO 8X14X5 HS×1
- SEAL-OIL,SD-40-55-8-L-HS×1
- BOLT-FLANGED,6X12Replaced by 130AA0612×4
- BOLT-FLANGED,6X16Replaced by 130AA0616×2
- BOLT-FLANGED,6X40Replaced by 130AA0640×4
- 130C130T0850Not stockedBOLT-FLANGED,8X50×18
- BOLT-FLANGED,8X75Replaced by 130CA0875×2
- BOLT-STUD,8X18×4
- SCREW-PAN,4X8Replaced by 214AA0408×2
