FH680D-AS01 4 Stroke Engine FH680D

FH680D-AS01 Cooling-Equipment Diagram

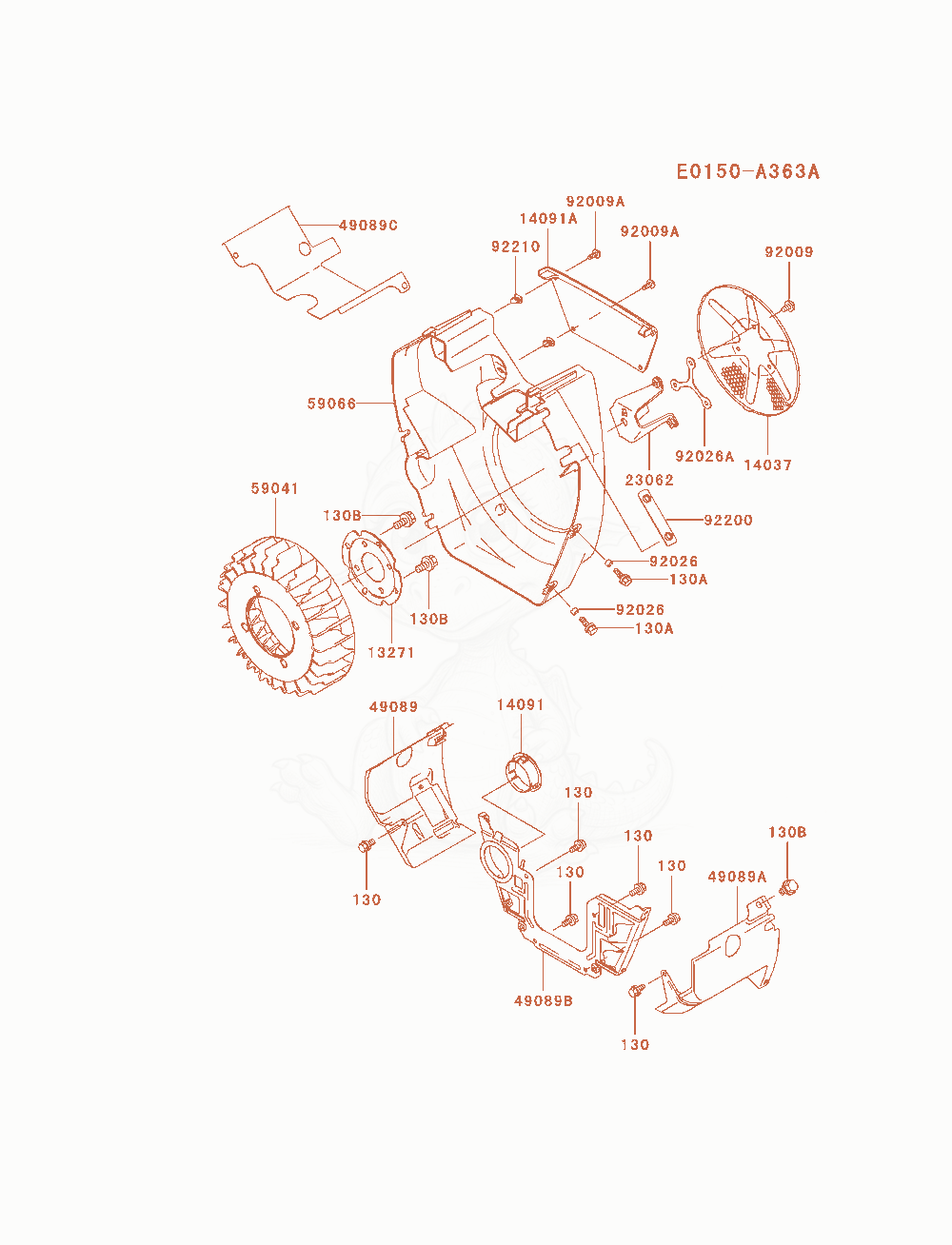

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FH680D-AS01 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1327113271-7015
$4.96
PLATE×1
1403714037-7008-9H
$31.46
SCREEN×1
1409114091-7002
$3.01
COVER×1
14091A14091-7005
$5.95
COVER×1
2306223062-7007
$23.44
BRACKET-COMP×1
4908949089-7004
$24.61
SHROUD-ENGINE×1
49089A49089-7005
$26.51
SHROUD-ENGINE×1
49089B49089-7056
$19.72
SHROUD-ENGINE×1
49089C49089-7050
$12.30
SHROUD-ENGINE×1
5904159041-7004Not stocked
FAN×1
5906659066-7005
$64.60
HOUSING-FAN×1
92009130BA0612
$1.59
BOLT-FLANGED,6X12×3
92009A92009-7009
$1.51
SCREW×4
9202692153-7007
$3.78
BOLT,FLANGED,6X16×4
92026A92026-7007
$4.89
SPACER×1
9220092200-7011
$4.88
WASHER×1
9221092210-7011
$1.58
NUT×4
130130B0612
$0.59
BOLT-FLANGED,6X12Replaced by 130AA0612×6
130A130B0616
$0.45
BOLT-FLANGED,6X16Replaced by 130AA0616×4
130B130B0816
$0.78
BOLT-FLANGED,8X16Replaced by 130AA0816×4
