FH580V-AS37 4 Stroke Engine FH580V

FH580V-AS37 Piston / Crankshaft Diagram

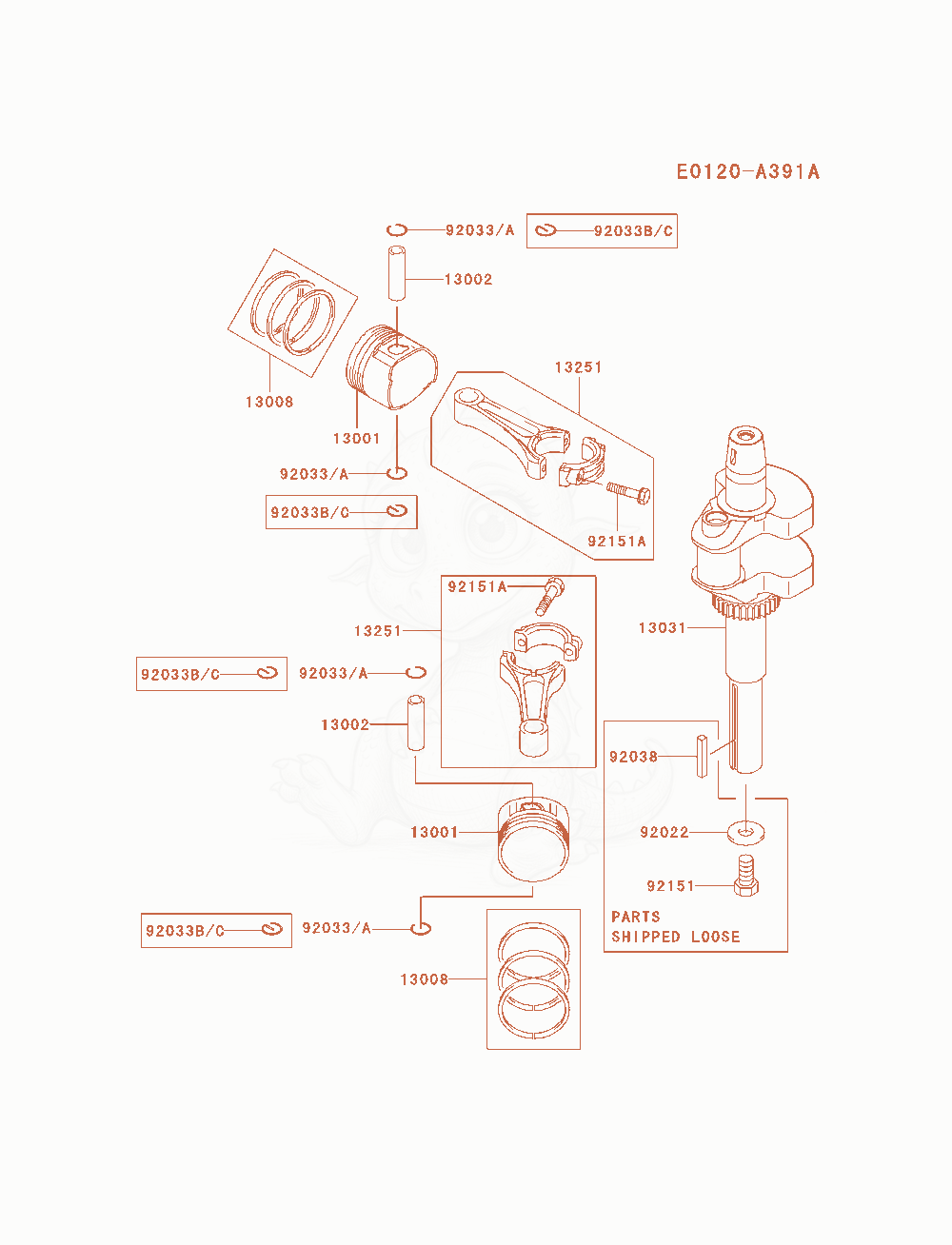

Exploded parts diagram of the Piston / Crankshaft of a Kawasaki FH580V-AS37 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1300113001-7010
$72.95
PISTON-ENGINE×2
1300213002-7001
$4.18
PIN-PISTON×2
1300813008-6060
$32.55
RING-SET-PISTON×2
1303113031-7070
$292.74
CRANKSHAFT-COMP×1
1325113251-0724
$53.72
ROD-ASSY-CONNECTING×2
9202292022-1982
$4.97
WASHER×1
92033B92033-7005
$0.39
RING-SNAP×4
9203892038-2101
$4.98
KEY×1
9215192151-7010
$1.29
BOLT,7/16-20UNF×1
92151A92151-7017Not stocked
BOLT,6X35×4
