FH580V-AS23 4 Stroke Engine FH580V

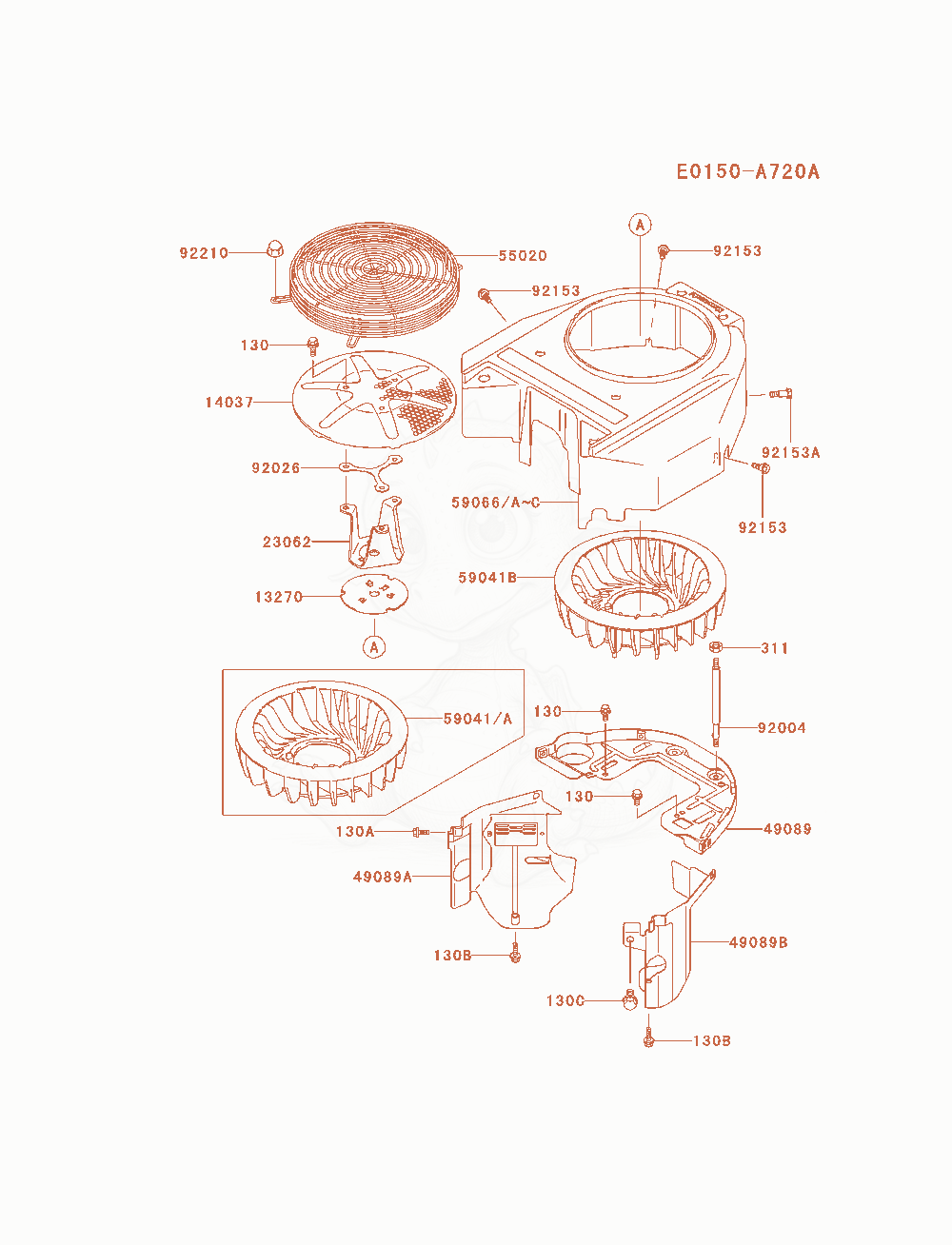

FH580V-AS23 Cooling-Equipment Diagram
- PLATE×1
- SCREEN×1
- BRACKET-COMP×1
- SHROUD-ENGINE×1
- SHROUD-ENGINE×1
- SHROUD-ENGINE×1
- GUARD×1
- 5904159041-0014Not stockedFAN×1
- 5906659066-7024Not stockedHOUSING-FAN×1
- STUD,6X137.5×2
- SPACER×AR
- BOLT,FLANGED,6X16×3
- BOLTReplaced by 92154-2823×1
- NUT×4
- BOLT-FLANGED,6X12Replaced by 130AA0612×5
- BOLT-FLANGED,6X16Replaced by 130AA0616×2
- BOLT-FLANGED,6X25Replaced by 130AA0625×2
- BOLT-FLANGED,8X16Replaced by 130AA0816×1
- NUT-HEX,6MM×2
