FH580V-AS22 4 Stroke Engine FH580V

FH580V-AS22 Starter Diagram

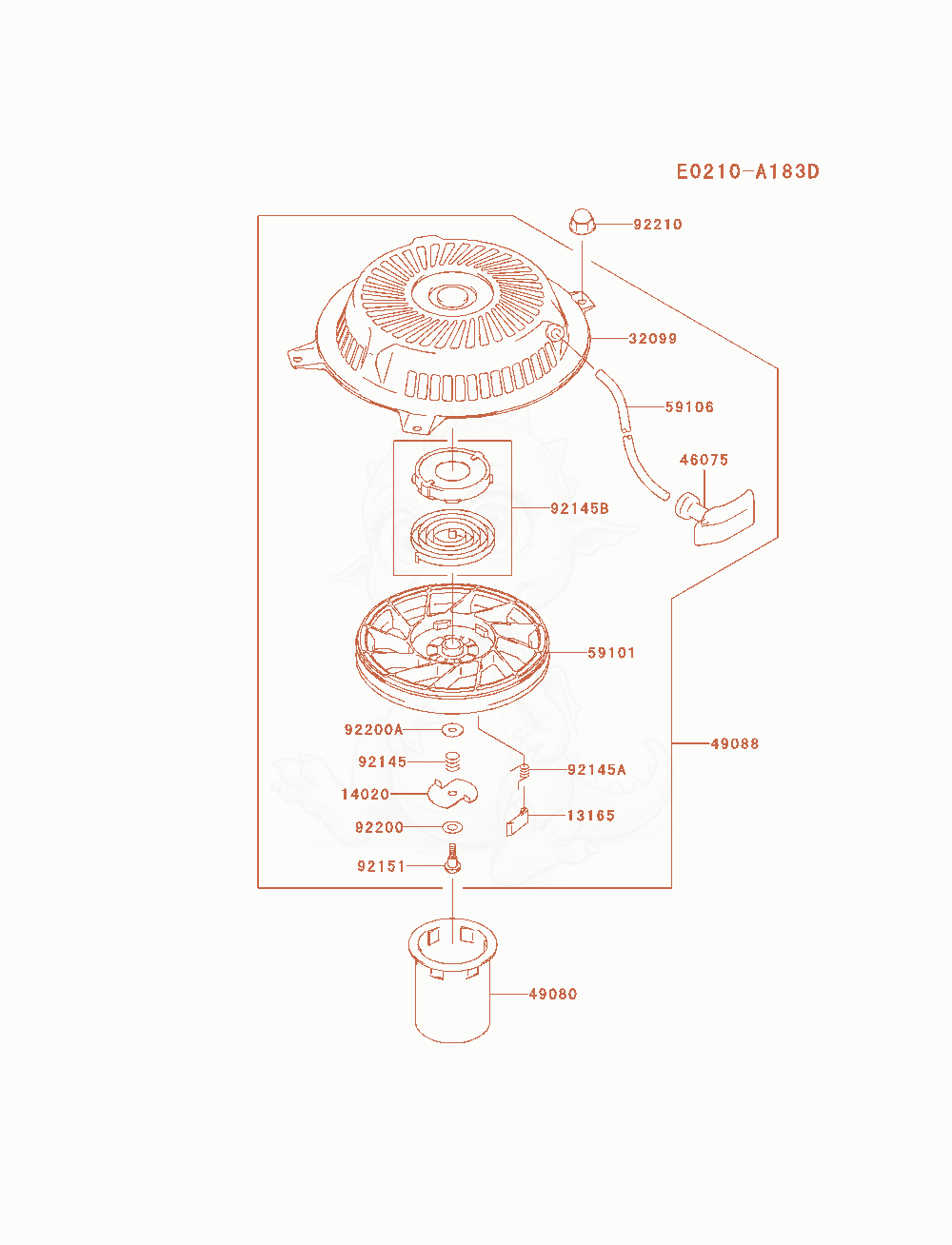

Exploded parts diagram of the Starter of a Kawasaki FH580V-AS22 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1316513165-7001
$3.97
PAWL,RECOIL STARTER×2
1402014020-7001
$8.75
RETAINER×1
3209932099-7001
$53.40
CASE,RECOIL STARTER×1
4607546075-7001
$4.40
GRIP,RECOIL STARTER×1
4908049080-0006
$12.66
PULLEY-STARTING×1
4908849088-0014
$161.06
STARTER-RECOIL×1
5910159101-7001
$23.37
REEL,RECOIL STARTER×1
5910659106-7005
$9.23
ROPE 4.3X1765×1
9214592145-7006
$1.26
SPRING×1
92145A92145-7007
$0.86
SPRING×2
92145B92145-7008
$17.74
SPRING×1
9215192151-7008
$1.95
BOLT×1
9220092200-7004
$1.03
WASHER×1
92200A92200-7005
$1.44
WASHER×1
9221092210-0003
$0.55
NUT×4
