FH580V-AS13 4 Stroke Engine FH580V

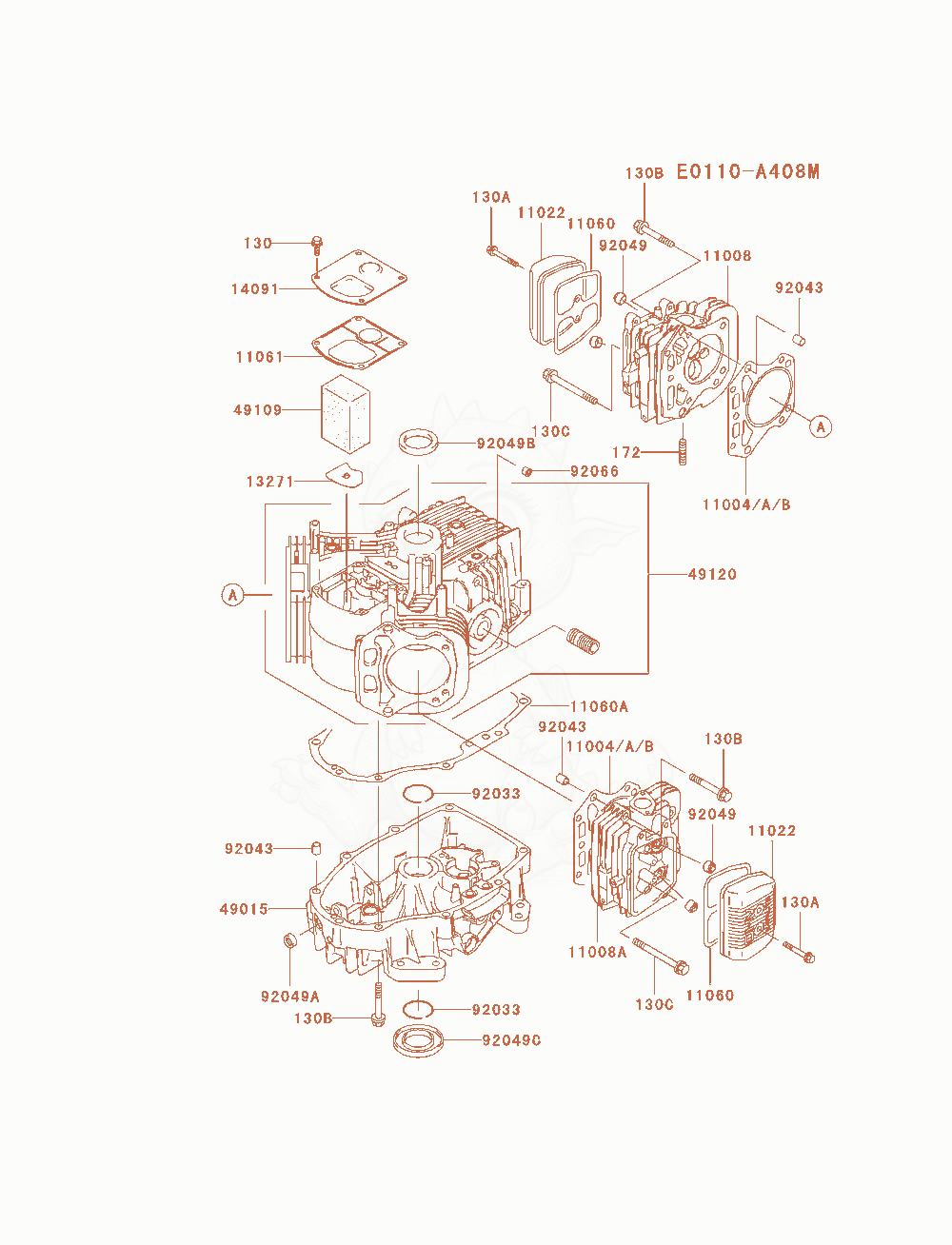

FH580V-AS13 Cylinder / Crankcase Diagram
- GASKET-HEAD×0
- GASKET-HEAD×2
- HEAD-COMP-CYLINDER,#1×1
- HEAD-COMP-CYLINDER,#2×1
- 1102211022-7028Not stockedCASE-ROCKER×2
- GASKET,ROCKER CASE×2
- GASKET,CRANKCASE COVE×1
- KIT,COVER & GASKET &×1
- PLATE×1
- KIT,COVER & GASKET &×1
- COVER-CRANKCASE×1
- KIT,COVER & GASKET &×1
- CRANKCASE-COMP×1
- RING-SNAP×2
- PIN×6
- SEAL-OIL,RVC2 6X11X10.2Replaced by 92049-0862×4
- 92049A92049-7005Not stockedSEAL-OIL,SO 8X14X5 HS×1
- SEAL-OIL,SD 35X48X8 R HS×1
- SEAL-OIL,SD 35X62X8 L×1
- PLUG×1
- BOLT-FLANGED,6X12Replaced by 130AA0612×4
- BOLT-FLANGED,6X40Replaced by 130AA0640×4
- BOLT-FLANGED,8X50Replaced by 130CA0850×17
- BOLT-FLANGED,8X75Replaced by 130CA0875×2
- BOLT-STUD,8X18×4
