FD851D-PS02 4 Stroke Engine FD851D

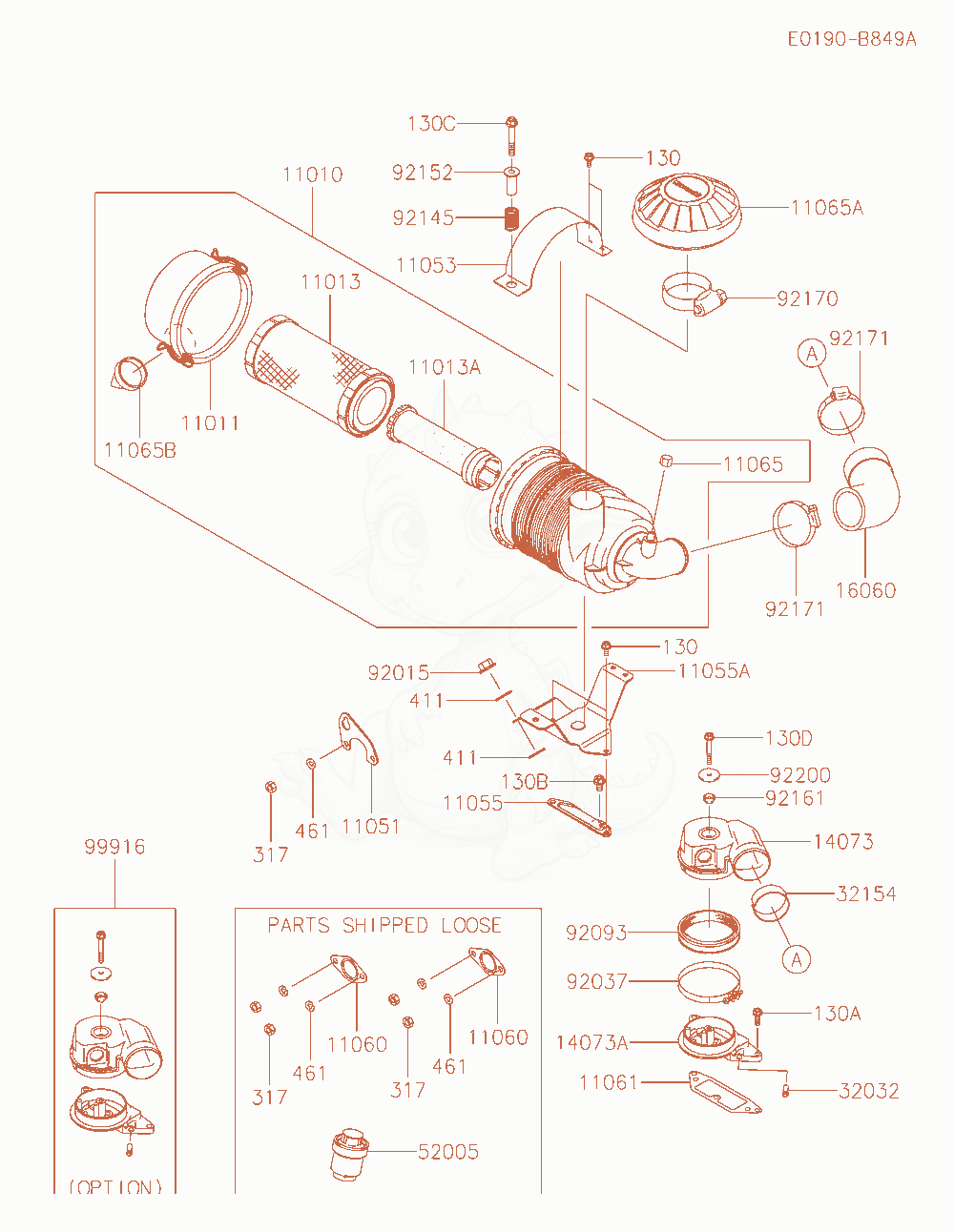

FD851D-PS02 Air-Filter / Muffler Diagram
- FILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- BRACKET×1
- BRACKET,UPPER×1
- BRACKET,FILTER-AIR×1
- BRACKET,FILTER-AIR,LO×1
- GASKET,MUFFLER×2
- GASKET×1
- CAP×1
- CAP,RAIN×1
- CAP×1
- DUCT×1
- DUCT,LOW×1
- PIPE-INTAKE×1
- 3203232032-3001Not stockedPIPE,PULSE×1
- PIPE,INSIDE DUCT×1
- GAUGE×1
- NUT,FLANGED,6MM×1
- CLAMP×1
- SEAL×1
- SPRING×1
- COLLAR×1
- DAMPER×1
- CLAMP×1
- CLAMP×2
- WASHER×1
- KIT-KHI PARTS,DUCT-SE×1
- BOLT-FLANGED,6X14×4
- BOLT-FLANGED,6X20×3
- 130B130B0814Not stockedBOLT-FLANGED,8X14×1
- 130C130D0855Not stockedBOLT-FLANGED,8X55×1
- 130D130P0645Not stockedBOLT-FLANGED,6X45×1
- NUT-HEX-SMALL,8MM×5
- WASHER-PLAIN,6MM×2
- WASHER-SPRING,8MM×5
