FD851D-NS00 4 Stroke Engine FD851D

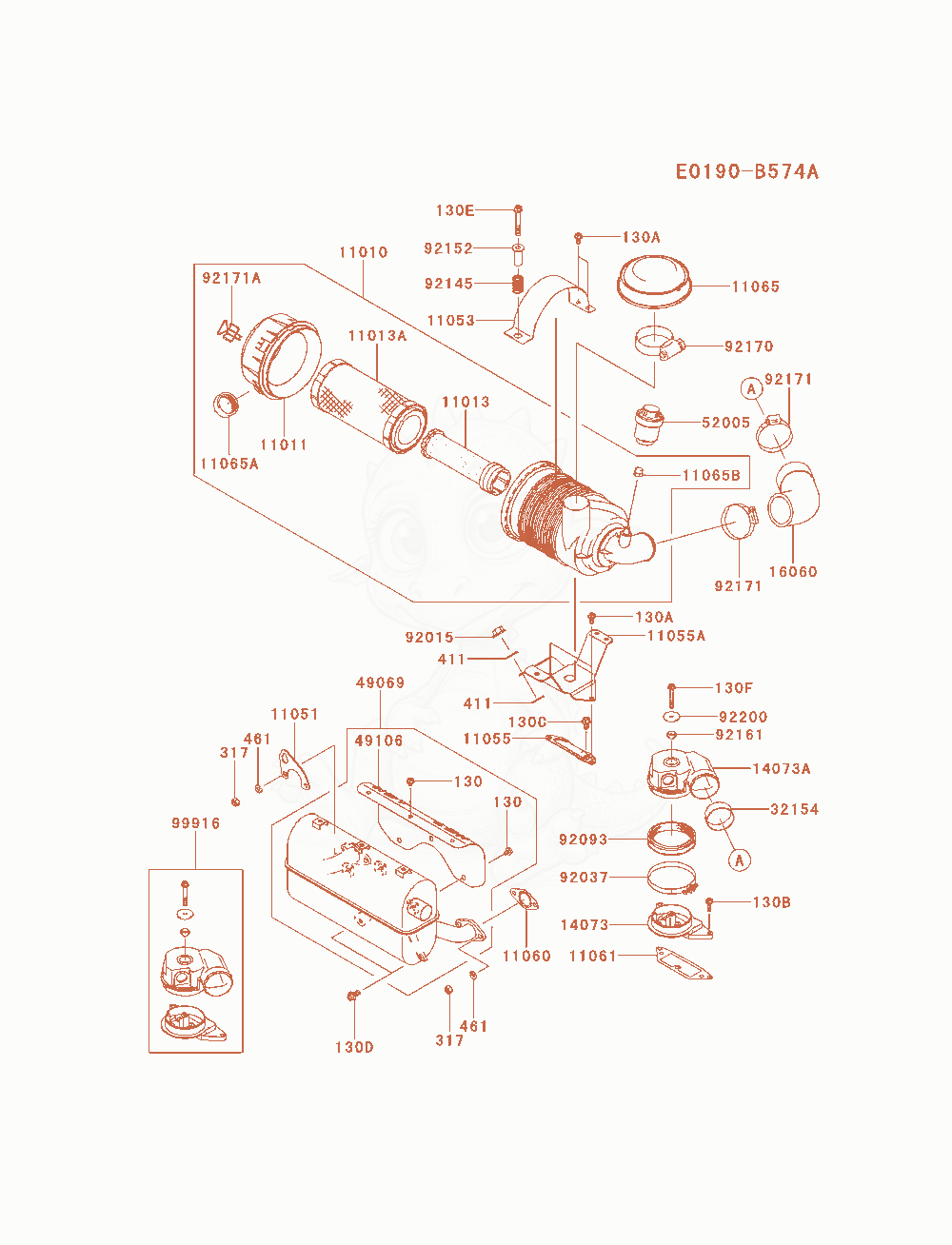

FD851D-NS00 Air-Filter / Muffler Diagram
- FILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- BRACKET×1
- BRACKET,UPPER×1
- BRACKET,FILTER-AIR×1
- BRACKET,FILTER-AIR,LO×1
- GASKET,MUFFLER×2
- GASKET×1
- CAPReplaced by 11065-1384×1
- CAP×1
- CAP×1
- DUCT,LOW×1
- DUCT×1
- PIPE-INTAKE×1
- PIPE,INSIDE DUCT×1
- MUFFLER-ASSY×1
- 4910649106-2644-9YNot stockedCOVER-MUFFLER×1
- 5200552005-2152Not stockedGAUGE×1
- NUT,FLANGED,6MM×1
- CLAMP×1
- SEAL×1
- SPRING×1
- COLLAR×1
- DAMPER×1
- CLAMP×1
- CLAMP×2
- CLAMP×2
- WASHER×1
- 9991699916-2183Not stockedKIT-KHI PARTS,DUCT-SET×AR
