FD791D-AS00 4 Stroke Engine FD791D

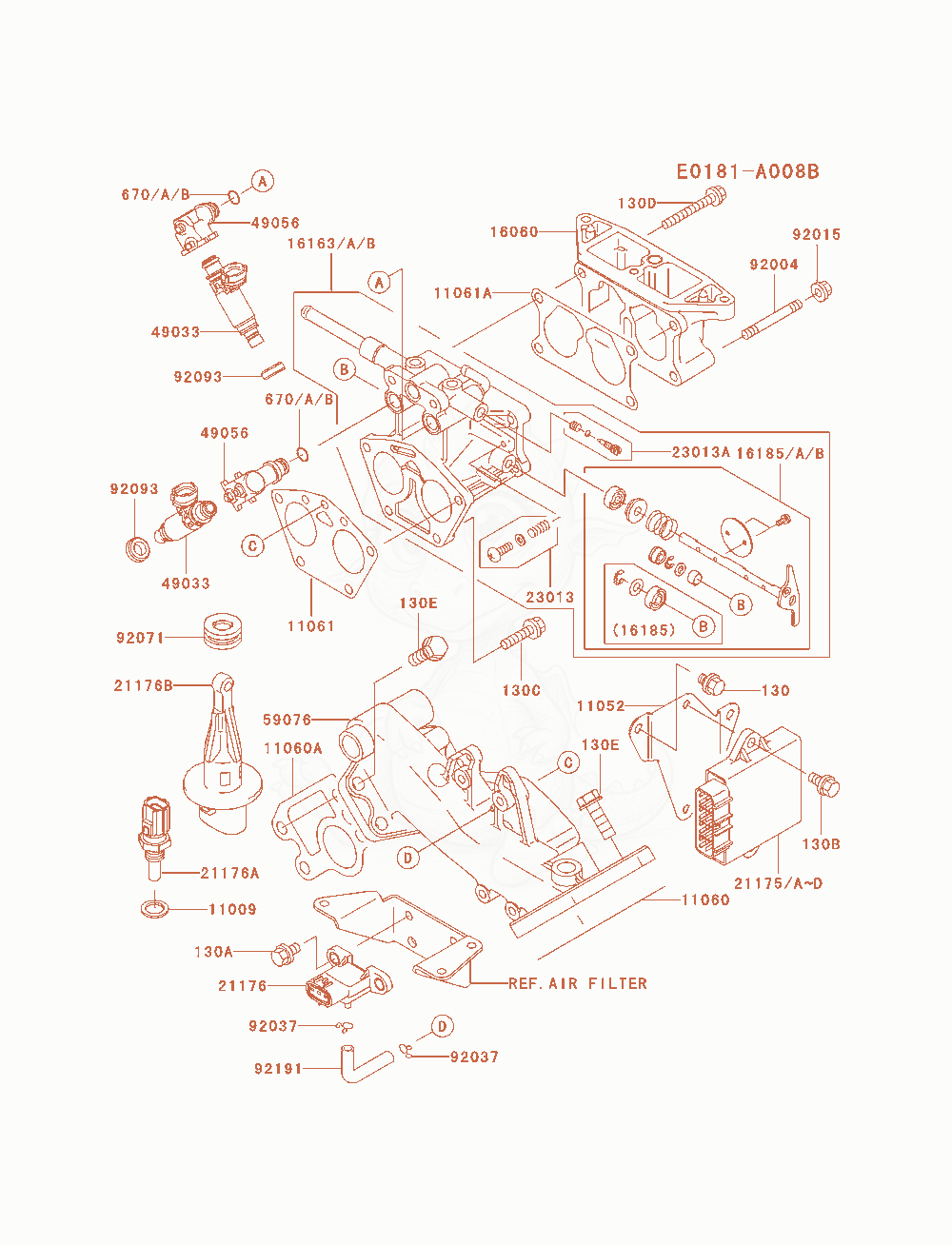

FD791D-AS00 Throttle-Equipment Diagram
- 2117521175-2061Not stockedCONTROL UNIT-ELECTRON×0
- 21175A21175-2061Not stockedCONTROL UNIT-ELECTRON×0
- 21175B21175-2061Not stockedCONTROL UNIT-ELECTRON×0
- 21175D21175-2061Not stockedCONTROL UNIT-ELECTRON×1
- 2117621176-1095Not stockedSENSOR,PRESSURE×1
- 21176A21176-2097Not stockedSENSOR×1
- 21176B21176-2106Not stockedSENSOR×1
- 2301323013-2065Not stockedSCREW-ASSY×1
- 23013A23013-2066Not stockedSCREW-ASSY×1
- 1100911009-1376Not stockedGASKET,12.4X17X1.5×1
- 1105211052-2063-9HNot stockedBRACKET×1
- 1106011060-2468Not stockedGASKET,INTAKE MANIFOLD×1
- 11060A11060-2469Not stockedGASKET,INTAKE MANIFOLD×1
- 1106111061-2058Not stockedGASKET×1
- 11061A11061-2075Not stockedGASKET,PIPE-INTAKE×1
- 1606016060-2194Not stockedPIPE-INTAKE×1
- 1616316163-0741Not stockedTHROTTLE-ASSY×1
- 16163B16163-0741Not stockedTHROTTLE-ASSY×1
- 1618516185-2043Not stockedVALVE-ASSY-THROTTLE×1
- 16185B16185-2046Not stockedVALVE-ASSY-THROTTLE×1
- 4903349033-2059Not stockedNOZZLE-INJECTION×2
- 4905649056-2062Not stockedPIPE-INJECTION×2
- 5907659076-2080Not stockedMANIFOLD-INTAKE×1
- 9200492004-2133Not stockedSTUD,6X100×2
- 9201592015-1367Not stockedNUT,FLANGED,6MM×2
- 9203792037-2163Not stockedCLIP×2
- 9207192071-2140Not stockedGROMMET×1
- 9209392093-2119Not stockedSEAL×2
- 9219192191-2133Not stockedTUBE,4X7X65×1
- 130130C0608Not stockedBOLT-FLANGED,6X8×2
- 130A130G0610Not stockedBOLT-FLANGED,6X10×2
- 130B130BA0612Not stockedBOLT-FLANGED,6X12×2
- 130C130BA0625Not stockedBOLT-FLANGED,6X25×2
- 130D130G0645Not stockedBOLT-FLANGED,6X45×2
- 130E130G0825Not stockedBOLT-FLANGED,8X25×8
- 670670B1508Not stockedO RING,8MM×0
- 670B670E1508Not stockedO RING,8MM×2
